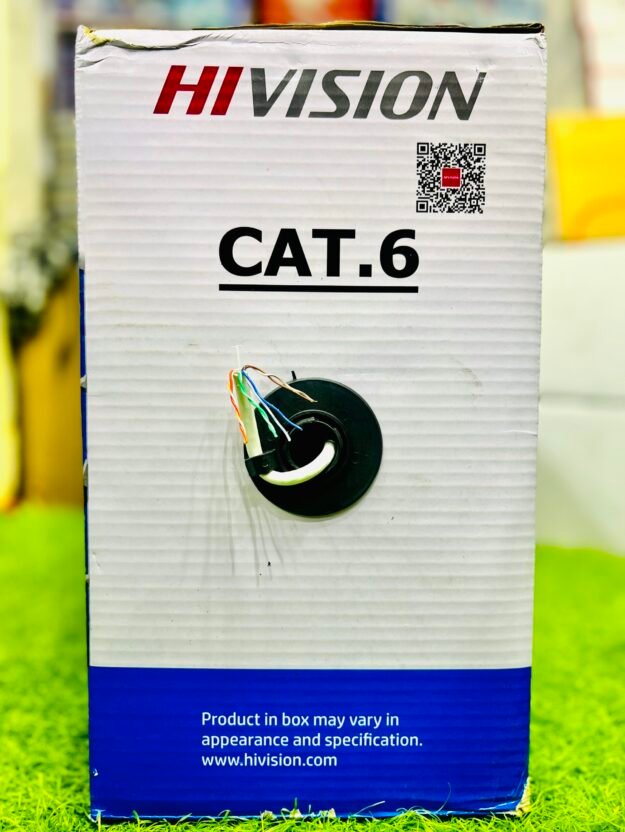

HIVISION UTP CAT6 24AWG 4PAIR Full copper 305M ROll

HIVISION UTP CAT6 24AWG 4PAIR Full copper 305M Roll – Product Overview

The HIVISION UTP CAT6 24AWG 4PAIR full copper 305 m roll is a reliable Cat6 Ethernet cable designed for Gigabit networks. It combines solid 24 AWG copper conductors with flexible jacket options to meet indoor and outdoor installations. Choose U/UTP for standard LANs or shielded F/UTP and S/FTP when EMI protection is required.

Technical Specifications

Category and Performance

• Category: CAT6 – supports up to 1 Gbps and 250 MHz bandwidth
• Max recommended permanent link: 100 m (328 ft)

Conductor and Gauge

• Gauge: 24 AWG (0.51 mm) solid copper – lower resistance and lower attenuation compared to 26 AWG
• Conductor type: Solid full copper recommended for best performance (avoid CCA for critical links)

Cable Construction and Shielding

• Pairs: 4 pair, twisted
• U/UTP: Unshielded twisted pair for general use
• F/UTP or S/FTP: Shielded variants available for environments with electrical interference

Jacket Options

• PVC: Standard indoor jacket
• LSZH: Low smoke zero halogen for improved fire safety in confined spaces
• PE: Outdoor UV resistant jacket for direct burial or external wiring

Why 24 AWG Matters

24 AWG is slightly thicker than 26 AWG. That means lower signal loss, better high frequency performance, and more reliable long runs while still remaining easy to terminate with standard RJ45 connectors. For PoE applications 24 AWG handles PoE and PoE+ (up to 30 W) well on typical runs. For PoE++ or very long runs consider 22 AWG or split the power load.

Typical Use Cases

• Home and office LAN connections: PCs, routers, switches, wireless access points
• CCTV and IP cameras: works with PoE devices, verify power budget before deployment
• Smart home and IoT wiring: reliable data for sensors and controllers
• Structured cabling installations where full copper conductors are required

Installation Tips and Best Practices

• Keep cable runs under 100 m for full performance without active devices
• Use shielded cable (F/UTP or S/FTP) and proper grounded connectors if EMI is present
• Choose LSZH in corridors and confined spaces for safety compliance
• Avoid kinking and tight bends; follow bend radius recommendations from the manufacturer
• Terminate with rated RJ45 connectors and test each run with a network tester

Price Guide in Pakistan (2025)

• U/UTP full copper: Rs 150 – Rs 250 per meter
• Shielded variants: Rs 200 – Rs 300 per meter
• Common brands available: D-Link, TP-Link, Netlink, Commscope

How to Choose the Right Variant

Consider these factors when selecting your CAT6 cable:

• Environment: Indoor use pick PVC or LSZH, outdoor use choose PE black UV rated jacket
• Interference: Use F/UTP or S/FTP if near heavy machinery, fluorescent lighting, or power lines
• PoE requirements: Check total wattage and cable length; upgrade gauge to 22 AWG for PoE++ or long runs
• Budget: Full copper offers superior performance; CCA is cheaper but not recommended for critical links

Frequently Asked Questions

Is this cable suitable for Gigabit Ethernet?

Yes. The HIVISION UTP CAT6 24AWG cable supports Gigabit Ethernet at 250 MHz when installed correctly.

Can I use this cable for PoE devices?

Yes. 24 AWG full copper handles PoE and PoE+ for most runs. For PoE++ or maximum power over long distances, consider a thicker gauge or power splitting strategies.

Buy and Configure

Need a custom length, advice on jacket type, or help with PoE power calculations? Contact us with your setup details and we will recommend the best HIVISION UTP CAT6 24AWG cable variant for your project.
