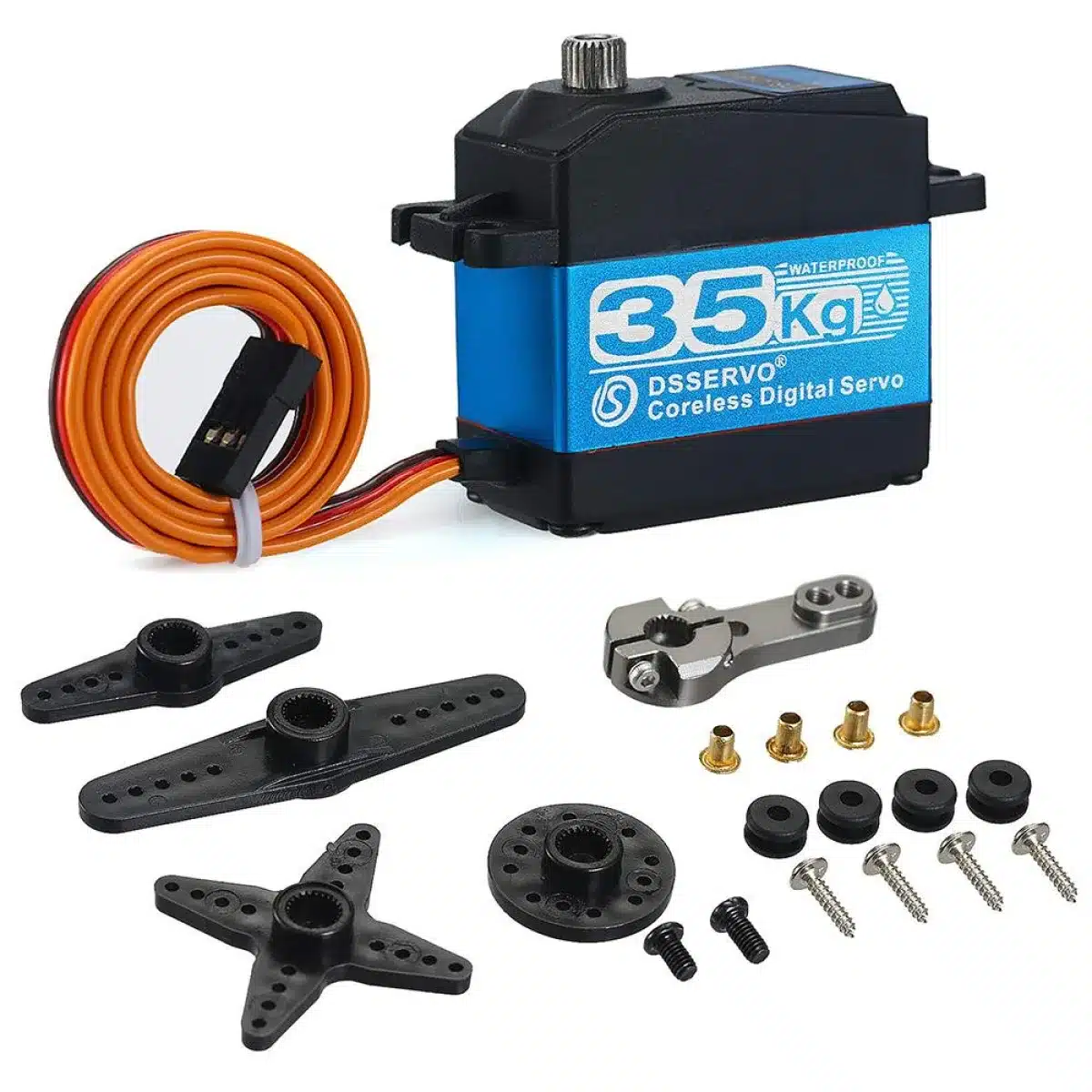

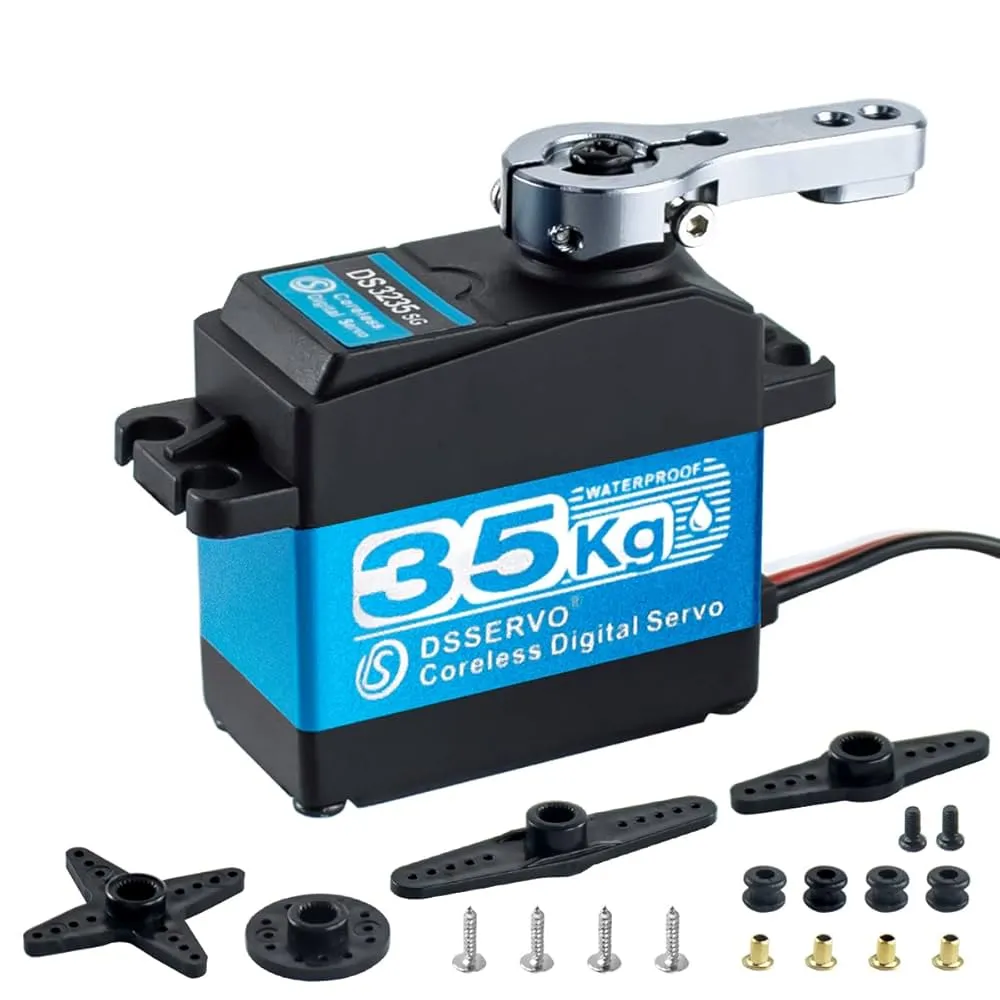

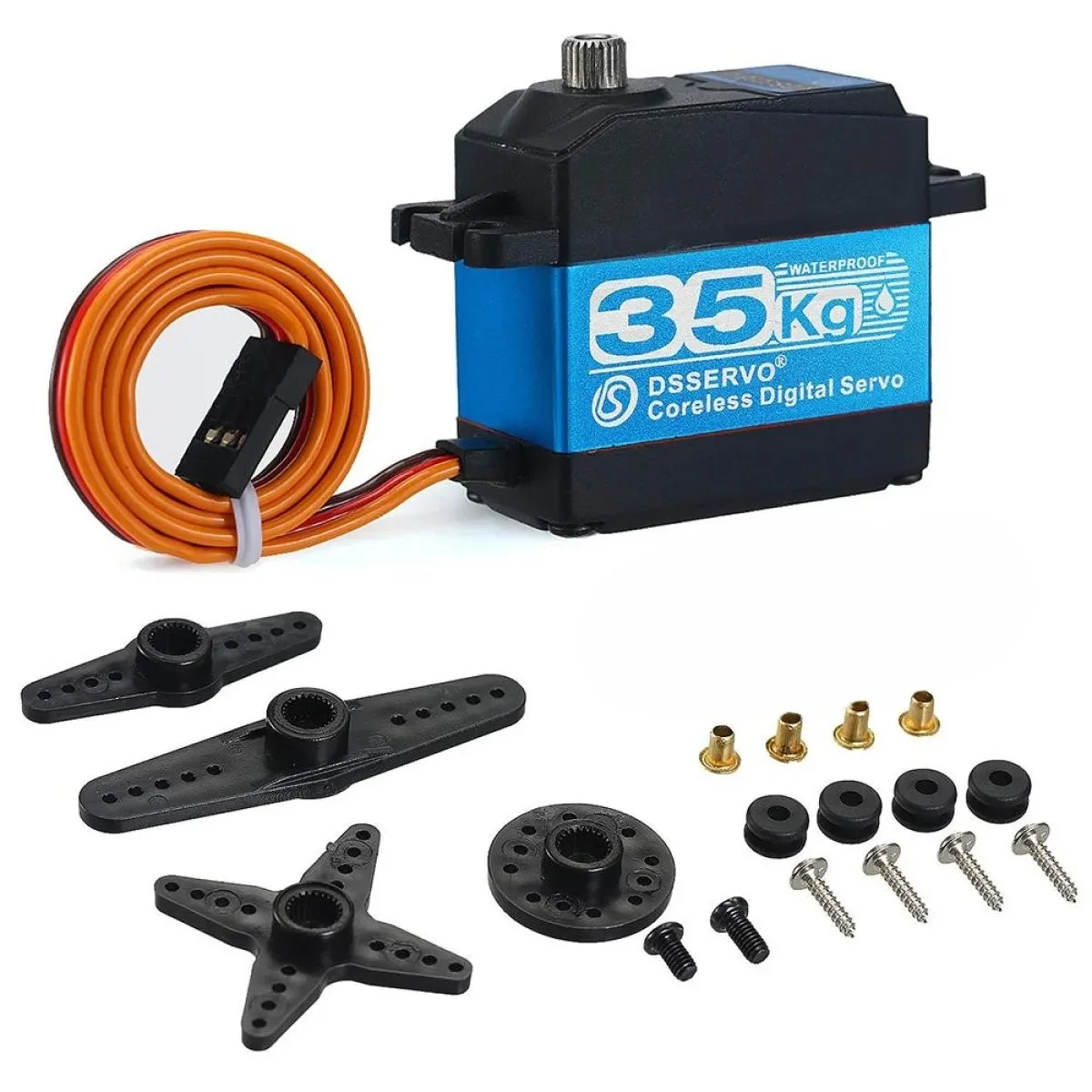

DS3235 35kg Metal Gear Digital Servo Motor

Availability:

Available on backorder


– Delivers up to 35kg·cm torque at 7.4V for maximum power
– Durable all-metal gear train for long service life
– Digital control for fast, accurate angle positioning
– Wide operating voltage: 4.8V to 7.4V for flexible power options
– Dual ball bearings for smooth motion and reduced friction
– Compatible with Arduino, Raspberry Pi, and standard RC controllers

DS3235 35kg Metal Gear Digital Servo Motor Overview

The DS3235 35kg Metal Gear Digital Servo Motor is a high-performance, ultra-high torque servo built for demanding robotics, large RC models, and industrial automation projects. Combining a robust metal gear train, digital control electronics, and heat-resistant construction, the DS3235 delivers reliable, repeatable motion when strength and precision matter most.

Key Features

  • Ultra-high torque: Up to 35kg·cm at 7.4V (30kg·cm at 6.0V) for heavy-duty actuation.
  • All-metal gears: Hardened metal gears resist wear for extended service life under load.
  • Digital control circuitry: Fast response and precise angle positioning for accurate motion control.
  • Wide voltage range: Operates from 4.8V to 7.4V to support various battery and power options.
  • Dual ball bearings: Reduced friction and smoother rotation for improved efficiency and lifespan.
  • Standard servo form factor: Compact dimensions (approximately 40 x 20 x 40.5 mm) for easy integration.
  • PWM signal compatible: Works seamlessly with Arduino, Raspberry Pi, and common RC receivers and controllers.
  • Heat-resistant build: Designed for sustained performance in continuous high-load scenarios.

Specifications

  • Torque: 30kg·cm @ 6.0V / 35kg·cm @ 7.4V
  • Operating voltage: 4.8V to 7.4V
  • Rotation range: 180° (±10°)
  • Dimensions: approx. 40 × 20 × 40.5 mm
  • Weight: approx. 65 g

Common Applications

  • Robotic arms and grippers that require high torque and precise positioning
  • Large RC crawlers, boats, and cars for steering and suspension control
  • Automated systems and prototypes where durable, repeatable motion is required
  • AI and research platforms that combine strength with digital control

Compatibility and Installation

  • Accepts standard PWM servo signals; compatible with hobby and embedded controllers.
  • Works well with Arduino and Raspberry Pi using common servo libraries and drivers.
  • Mount using standard servo screws and brackets; verify clearance for full 180° travel.
  • Use appropriate power supply or battery pack rated for 4.8V to 7.4V and capable of supplying peak current under load.

Tips for Optimal Performance

  • Use a stable power source with sufficient current headroom to avoid voltage sag under load.
  • Consider adding a small capacitor across the power rails to reduce electrical noise and protect electronics.
  • Securely mount the servo to minimize unwanted flex that reduces positional accuracy.
  • For continuous heavy use, monitor temperature and allow cooling periods if necessary.

Why Choose the DS3235 Servo

If your project requires a combination of raw torque, precise digital control, and reliable mechanical construction, the DS3235 35kg Metal Gear Digital Servo Motor is an excellent option. It balances high load capability with compatibility for hobbyists and professionals alike.

Note: Images are for illustration purposes only.
