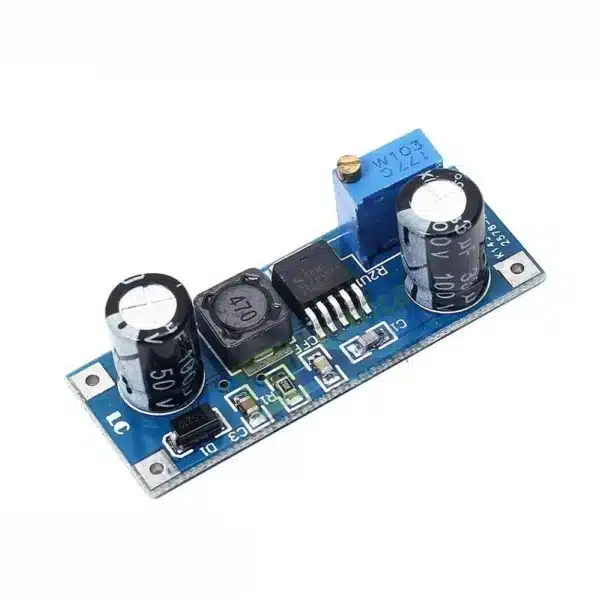

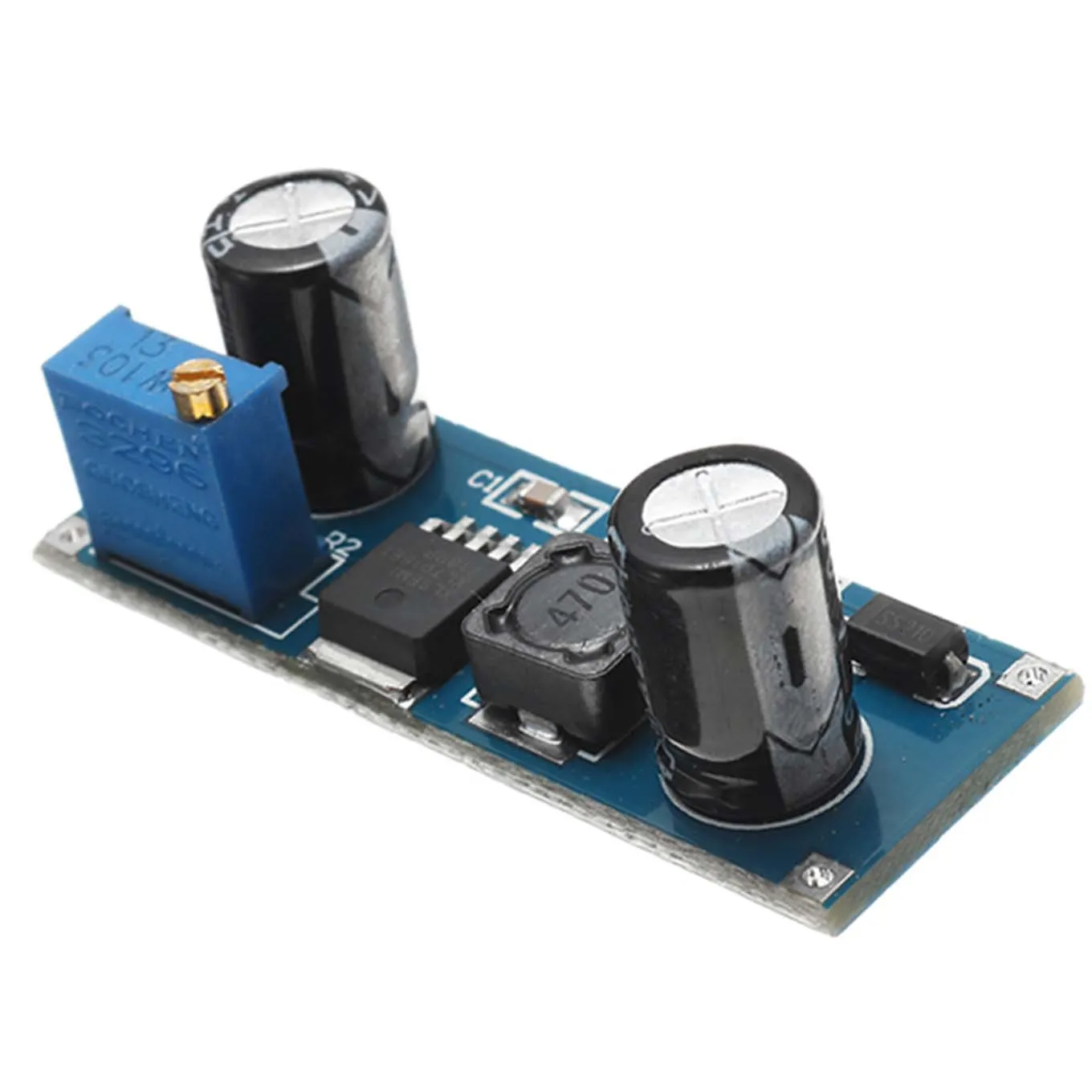

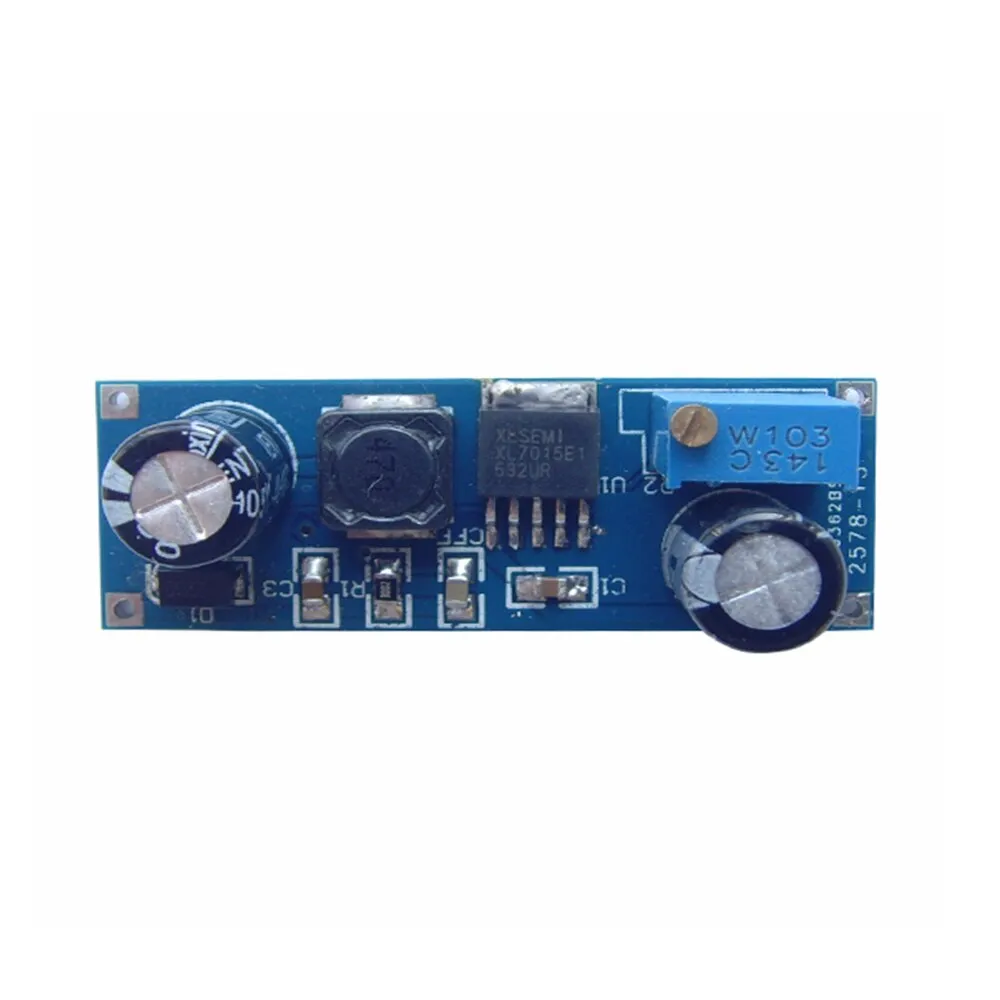

DC-DC Buck Converter Step Down Module (XL7015)

XL7015 DC-DC Buck Converter Step Down Module – Product Overview

The DC-DC Buck Converter Step Down Module (XL7015) is a compact, high-efficiency power regulator designed to convert higher DC voltages down to stable 5V or 12V outputs. Based on the XL7015 switching regulator IC, this module delivers reliable voltage regulation with low heat generation, making it ideal for embedded systems, DIY electronics, robotics, and industrial control.

Why choose this XL7015 buck converter

• Wide input compatibility: accepts 8-80V DC, allowing use with diverse power sources including batteries, solar panels, and industrial supplies.
• Stable fixed outputs (5V or 12V) tailored to common electronics and microcontroller needs.
• Efficient performance up to 85% reduces energy waste and thermal stress on the board.
• Compact PCB footprint fits tight enclosures and portable projects.

Key Features

• Module Type: DC-DC Buck Converter (step down)
• Regulator IC: XL7015 high-efficiency switching regulator
• Input Voltage: 8 V to 80 V DC
• Output Voltage: Fixed 5 V or 12 V (select version)
• Output Current: 0.8 A continuous, 1 A peak
• Efficiency: Up to 85%
• Switching Frequency: Approximately 150 kHz
• Protections: Short-circuit protection and thermal shutdown
• Compact and lightweight design for space-constrained installations

Technical Specifications

• IC: XL7015
• Max continuous output current: 0.8 A (with 1 A short peak capability)
• Operating ambient temperature: typical range for electronic modules (follow datasheet limits)
• Typical efficiency: 80 to 85% depending on input/output and load
• Switching frequency: ~150 kHz for stable regulation and small external components

Applications for the XL7015 DC-DC Buck Converter

• Power supply for Arduino, ESP32, Raspberry Pi and other microcontroller projects
• Battery-powered systems and renewable energy interfaces
• Industrial equipment and control electronics requiring regulated low-voltage rails
• Robotics, automation, and sensor systems
• General electronics where reliable step-down regulation is required

Benefits and Practical Advantages

• Reduced heat compared with linear regulators when dropping large voltages.
• Longer battery life in portable applications due to high efficiency.
• Compact solution that simplifies power distribution in multi-voltage systems.
• Built-in protections enhance reliability and reduce risk of damage from faults.

Wiring and Installation Tips

• Observe correct polarity: connect input + and – to the designated pads or terminals.
• Use adequately sized wires for input and output to minimize voltage drop at higher currents.
• Keep the module ventilated; although efficient, allow airflow if operating near rated current.
• For highest efficiency and lowest noise, place input and output decoupling capacitors close to module terminals if additional filtering is required.
• Check the module version (5 V or 12 V) before connecting sensitive loads.

Protection and Reliability

The module includes short-circuit protection and thermal shutdown to protect both the converter and the connected load. These safeguards make the XL7015 module safer to use in experimental setups and reduce the risk of permanent damage under fault conditions. Follow recommended operating limits for continuous loads to ensure longevity.

Ordering Notes and Compatibility

• Select the correct fixed-output version (5 V or 12 V) when ordering.
• This module is intended for low-power applications; for higher current requirements choose a regulator rated for the needed continuous current.
• Images are for illustration purposes only; confirm the module layout and terminal labels on the actual product upon receipt.

For detailed electrical characteristics and maximum ratings refer to the XL7015 IC datasheet and follow safe wiring practices when integrating this buck converter into your project.
