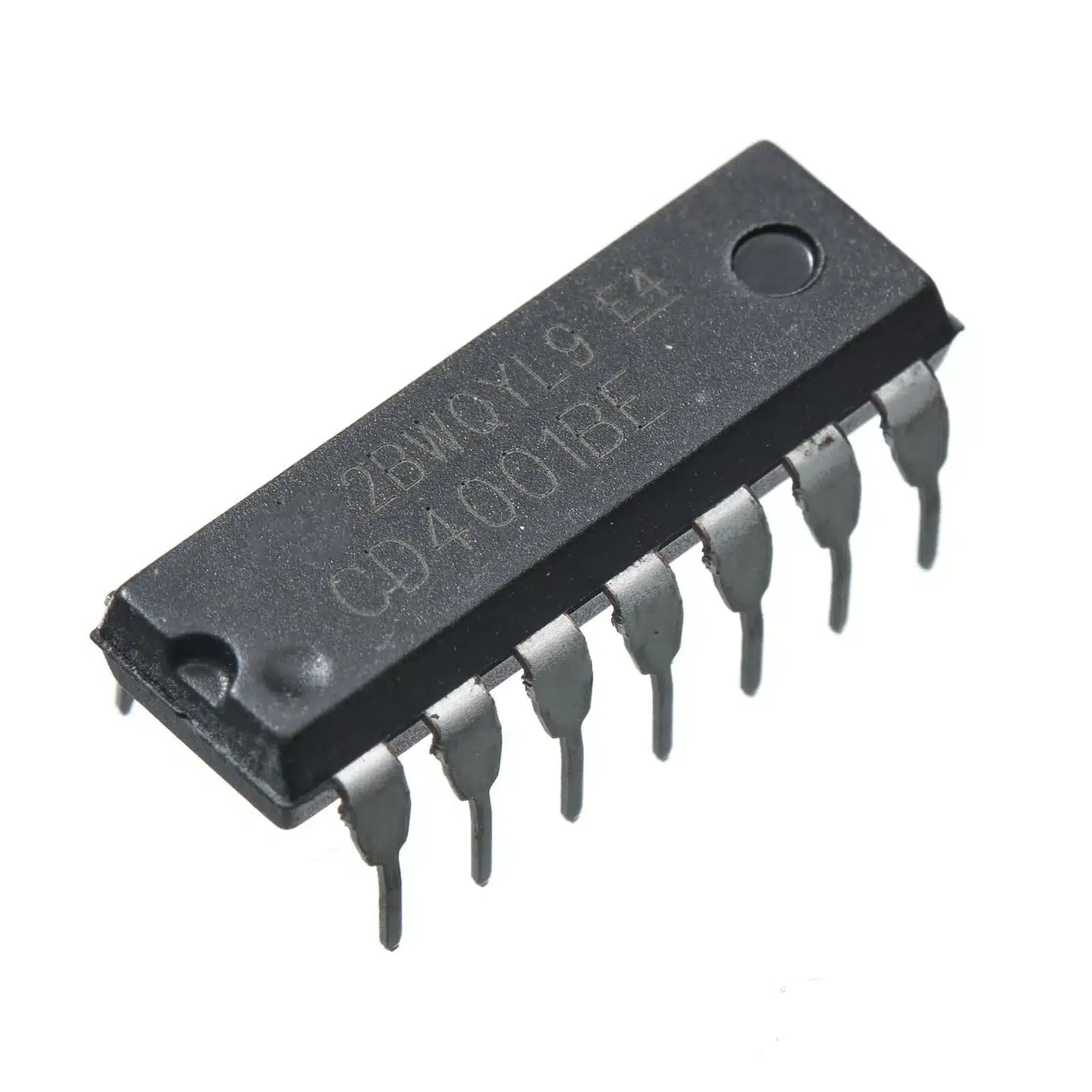

CD4001 Quad 2-Input NOR Gate IC (DIP)

Availability:

Available on backorder


  • CMOS Quad 2-Input NOR gate IC with four independent gates
  • Wide supply voltage range: 3-15V for flexible use
  • High noise immunity and low power consumption
  • Standard DIP package – breadboard and PCB friendly
  • Can implement any logic function since NOR is universal
  • Ideal for prototyping, educational labs, and digital designs

CD4001 Quad 2-Input NOR Gate IC (DIP) — Overview

The CD4001 is a CMOS logic IC that houses four independent 2-input NOR gates in a single Dual Inline Package (DIP). With a wide operating voltage range and strong noise immunity, this IC is suitable for both beginner projects and professional digital designs. As a universal gate, NOR can be used to construct any other Boolean function, making the CD4001 an essential component for digital logic implementations.

Key Specifications

  • Function: Quad 2-input NOR gates (4 independent gates)
  • Supply voltage: 3 to 15 V
  • Technology: CMOS for low power consumption
  • Package: Standard DIP for easy prototyping
  • Advantages: High noise immunity, TTL-compatible input levels in many cases, and the ability to drive multiple logic inputs

Features

  • Contains four independent 2-input NOR gates in one IC
  • Wide supply voltage range (3-15V) for flexible system integration
  • Low quiescent current and reduced power dissipation
  • High noise immunity suitable for noisy environments
  • Breadboard-friendly DIP package for rapid prototyping

Practical Applications

  • Digital logic circuit design and combinational logic
  • Signal processing and basic logic function implementation
  • Timing, control systems, and simple gating operations
  • Educational electronics labs and hands-on learning projects
  • Prototyping on breadboards and small-scale PCB projects

Why Choose the CD4001?

  • Versatility: Use NOR gates to create any logic function, reducing the number of different IC types needed.
  • Ease of use: Standard DIP packaging simplifies prototyping and swapping components during development.
  • Robustness: CMOS design provides excellent noise tolerance and low static current draw.

Design Notes and Tips

  • Observe proper power supply decoupling (0.1uF ceramic capacitor close to VCC and GND) to improve noise performance.
  • When interfacing with TTL devices, verify input thresholds and, if needed, use proper level shifting.
  • Avoid exceeding the absolute maximum ratings for supply voltage and input currents to ensure long-term reliability.

Note: Images are for Illustration Purposes Only.
