Arduino MEGA Sensor Shield V2.0 Expansion Board

Arduino MEGA Sensor Shield V2.0 Overview

The Arduino MEGA Sensor Shield V2.0 Expansion Board simplifies connections between an Arduino MEGA 2560 and multiple sensors, actuators, and communication modules. It exposes all MEGA I/O pins on easy-to-use 3-pin headers (VCC, GND, Signal) so you can connect devices without a tangle of jumper wires.

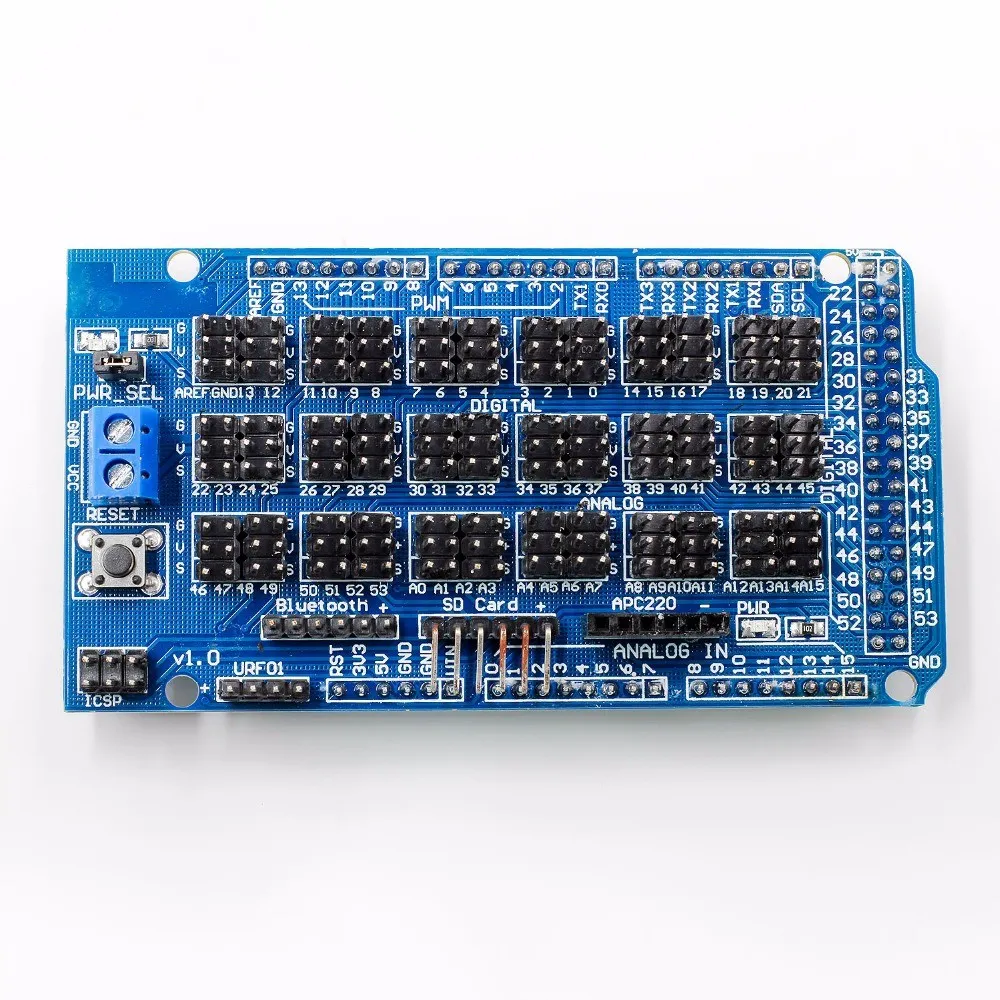

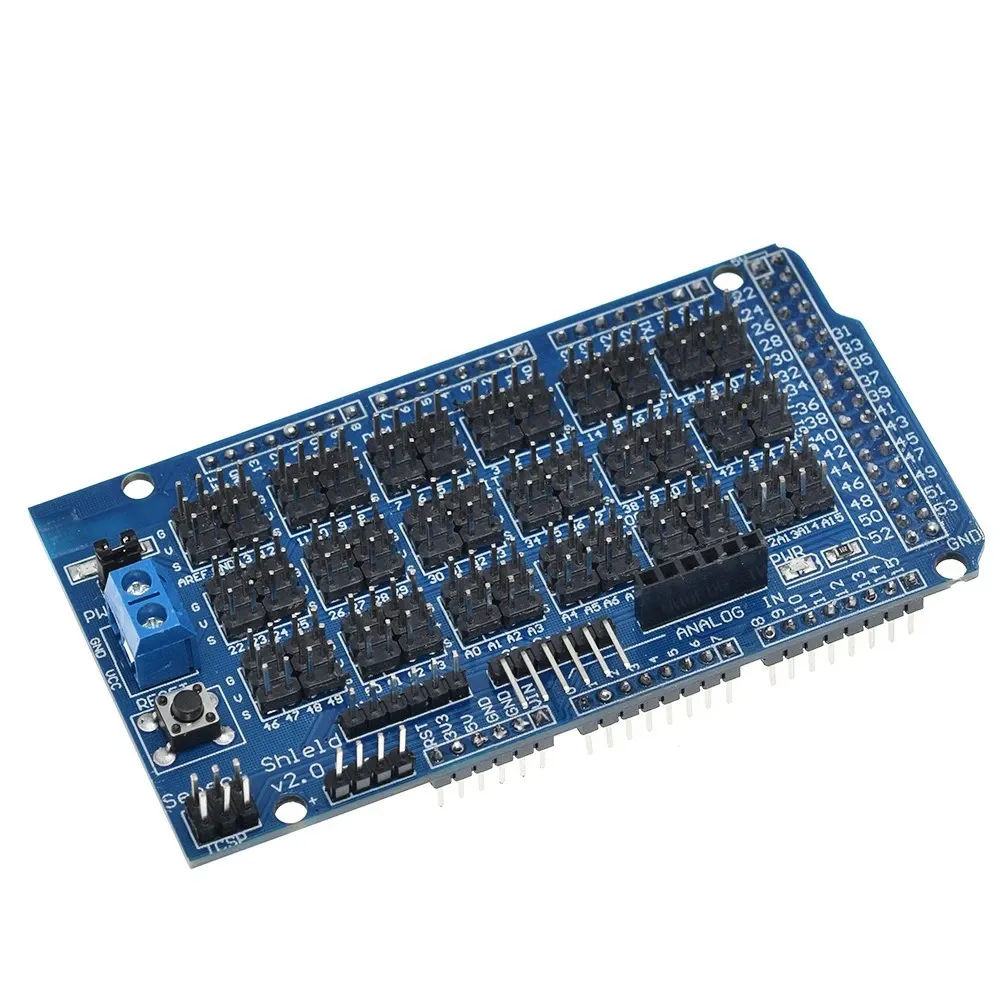

Product Image

Key Features

• Designed for Arduino MEGA 2560 compatibility.
• Breaks out all digital and analog MEGA pins to 3-pin connectors (VCC, GND, Signal) for quick sensor and module hookup.
• Dedicated interfaces for I2C, UART, and SPI to support multiple communication modules simultaneously.
• Multiple servo motor connectors for direct servo wiring and control in robotics.
• Onboard reset button for convenient board resets during development.
• Clear, printed pin labeling to reduce wiring mistakes and speed up prototyping.
• Compact, stackable shield form factor for modular, space-saving projects.

Why Use This Sensor Shield

This expansion board is ideal when a project requires many sensors, servos, or communication modules. It eliminates the need for breadboards and messy jumper wires, provides consistent VCC and GND routing, and groups signal lines so wiring is faster and less error-prone.

Benefits

• Faster prototyping: plug-and-play 3-pin headers reduce setup time.
• Cleaner wiring: organized layout keeps projects tidy and easier to debug.
• Scalable: stackable design supports complex builds with multiple shields.
• Versatile: works with sensors, communication modules, and servo motors for robotics, IoT, and automation.

Applications

• Robotics and automation control systems.
• Large multi-sensor Arduino MEGA projects.
• IoT and home automation hubs using MEGA 2560.
• Educational electronics and classroom prototyping.
• Complex projects requiring simultaneous I2C, UART, and SPI devices.

Compatibility and Connectivity

Compatible with Arduino MEGA 2560 boards. Every MEGA digital and analog pin is broken out to 3-pin headers (VCC, GND, Signal), and dedicated connectors are provided for standard communication buses:

• I2C (SDA, SCL)
• UART (RX, TX)
• SPI (MOSI, MISO, SCK, SS)

Servo and Power Notes

• Multiple servo connectors allow direct servo wiring. Ensure your power supply can handle servo current draw; use an external power source for multiple servos to avoid overloading the MEGA.
• Confirm voltage requirements for all connected sensors and modules before powering the board.

Installation and Wiring Tips

• Mount the shield on a properly seated Arduino MEGA 2560 header to ensure all pins align.
• Label and document pin usage for complex projects to avoid conflicts, especially when using I2C, UART, and SPI at the same time.
• Use the onboard reset button when uploading new sketches to simplify development cycles.
• For high-current modules, route power to a separate regulated supply and common the grounds.

Technical Specifications

• Compatibility: Arduino MEGA 2560
• Header type: 3-pin connectors (VCC, GND, Signal) for each broken-out pin
• Interfaces: I2C, UART, SPI
• Special features: Onboard reset button, stackable shield design, clear pin markings

Frequently Asked Questions

Can I connect multiple I2C devices?

Yes. The shield provides I2C lines (SDA, SCL) that can be shared by multiple devices with unique addresses.

Is the shield suitable for classroom use?

Yes. Its clear labeling and plug-in headers make it well suited for educational prototyping and beginner-friendly projects.

Ordering Information

Note: Images are for illustration purposes only. Use this expansion board with a compatible Arduino MEGA 2560 for best results.
