The 74283 4-Bit Binary Full Adder IC is a high-speed arithmetic logic IC designed to perform binary addition of two 4-bit numbers along with a carry input. It provides a carry output, enabling easy cascading of multiple adders for higher-bit operations. Packaged in a standard DIP (Dual Inline Package), it is widely used in arithmetic logic units (ALUs), microprocessor systems, and digital computing circuits.
This IC eliminates the need for manual implementation of logic gates for addition, offering a compact and reliable solution for performing binary addition in digital systems. It is TTL-based, ensuring compatibility with other 74xx series logic devices.
Key Features:
- Performs 4-bit binary addition with carry input and carry output
- Cascadable for multi-bit addition
- Standard DIP package for easy prototyping and breadboard use
- TTL compatible with low propagation delay
- Operating voltage: 4.75V to 5.25V
- Ideal for use in arithmetic logic units, microprocessors, and digital calculators
Applications:
- Arithmetic Logic Units (ALUs)
- Microprocessor-based systems
- Digital calculators
- High-speed arithmetic operations in digital circuits
- Education and learning projects

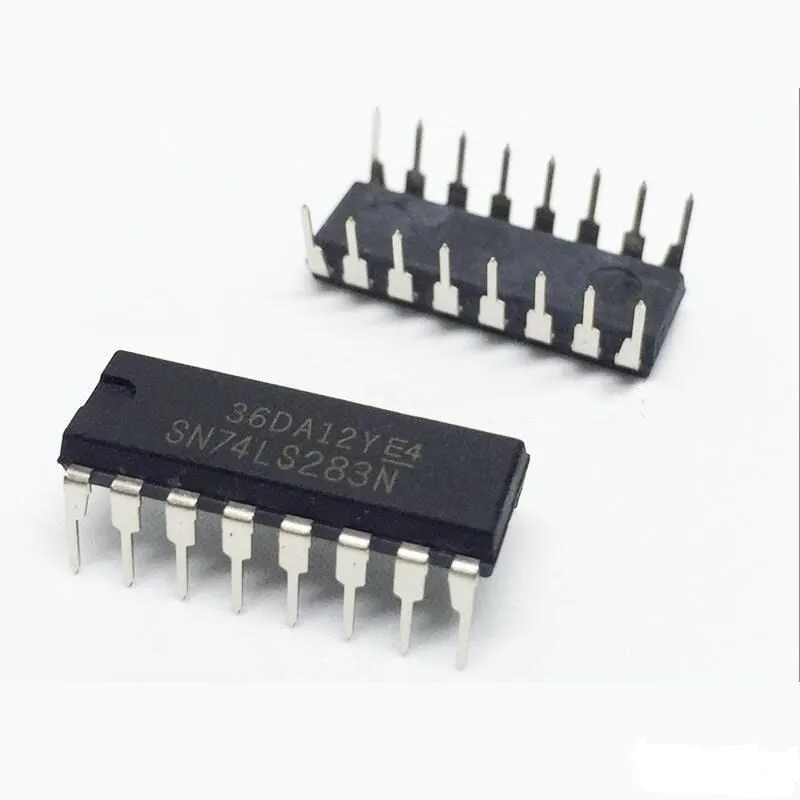

Note: Images are for Illustration Purposes Only
