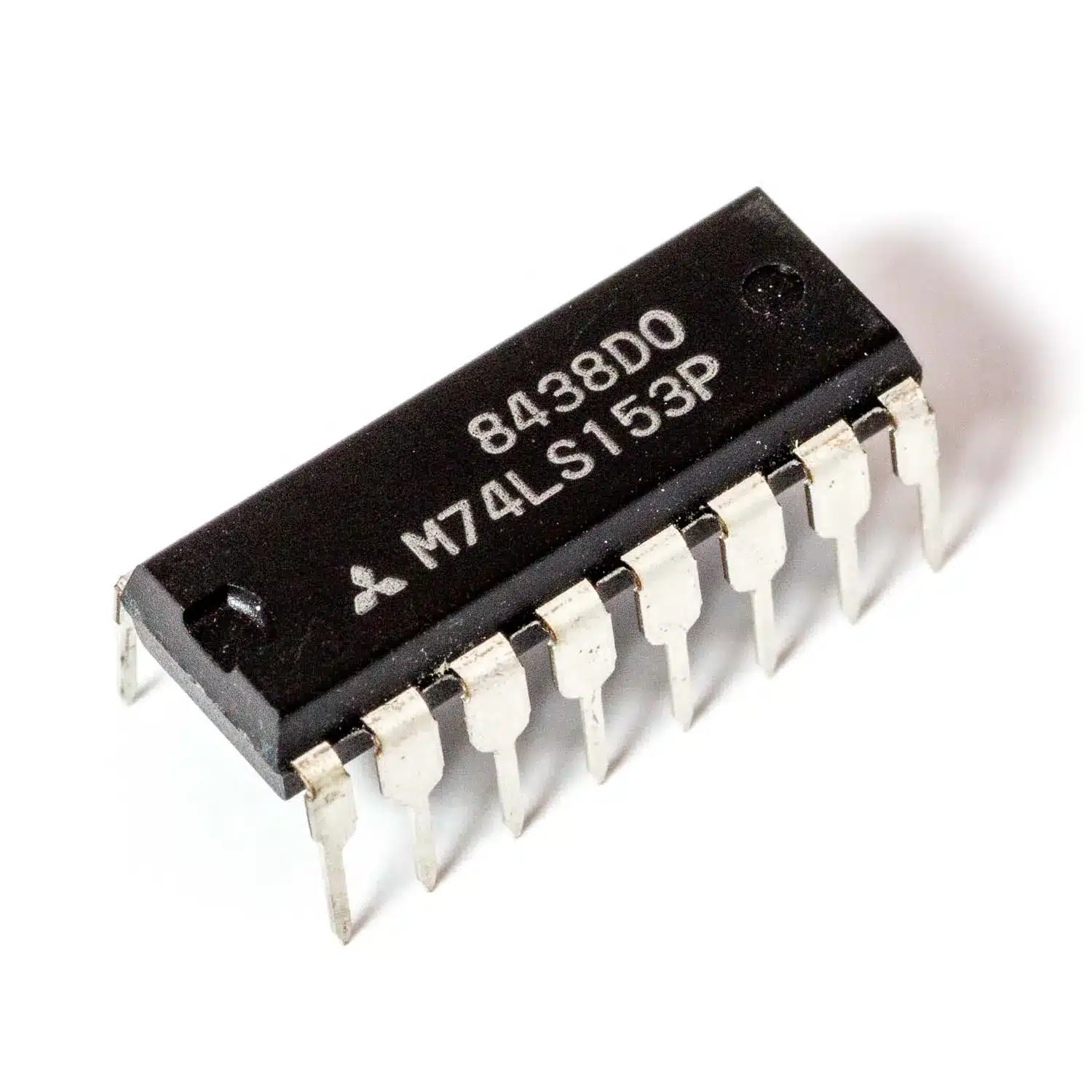

74153 Dual 4-Input Multiplexer IC (DIP)

Availability:

Available on backorder


  • Dual independent 4-input multiplexers in a single DIP package
  • TTL-compatible inputs and outputs for standard digital logic
  • Enable inputs provide output control and flexibility
  • Breadboard-friendly DIP form factor for easy prototyping
  • Low power consumption and reliable operation for digital systems
  • Ideal for data routing, logic implementation, and educational projects

Overview: 74153 Dual 4-Input Multiplexer IC (DIP)

The 74153 Dual 4-Input Multiplexer IC (DIP) is a versatile TTL-compatible device that integrates two independent 4-input multiplexers in one compact package. Each multiplexer selects one of four data inputs and routes it to the corresponding output, with additional enable inputs for greater control. This IC is widely used for signal selection, data routing, and combinational logic functions in hobbyist, academic, and professional designs.

Key Features

  • Two independent 4-input multiplexers in a single DIP IC
  • TTL-compatible inputs and outputs for seamless integration with 74xx logic families
  • Enable (enable/disable) inputs for each multiplexer to control output states
  • Breadboard-friendly DIP package for rapid prototyping and testing
  • Low power consumption and reliable operation in digital environments
  • Suitable for a wide range of digital system projects and experiments

Applications and Use Cases

Common applications for the 74153 include:

  • Data selection and routing in multiplexed digital systems
  • Implementing logic functions and combinational circuits
  • Signal control and channel selection in microprocessor-based systems
  • Educational electronics kits and digital circuit experiments
  • Prototyping and breadboard development where compact dual multiplexers are needed

Integration Tips and Best Practices

  • Power: The device is TTL-compatible and typically used with a nominal 5V supply. Follow the recommended supply and grounding practices for TTL logic to ensure stable operation.
  • Enable Inputs: Use the enable inputs to gate outputs during initialization or to implement tri-state-like control in your design.
  • Noise and Decoupling: Place a bypass capacitor (for example 0.1uF) close to the VCC and GND pins to reduce supply noise and ensure clean switching.
  • Interfacing: Direct interfacing is straightforward with other 74xx TTL chips; ensure logic-level compatibility when connecting to CMOS devices or microcontrollers.
  • Prototyping: The DIP form factor fits standard breadboards and sockets, making it ideal for quick experiments and iterative circuit development.

Why Choose the 74153 for Your Project

The 74153 delivers compact dual-multiplexer functionality in a single, easy-to-use package. Its TTL compatibility, enable control inputs, and DIP package make it a practical choice for designers who need reliable signal selection and routing without added complexity. Whether you are building educational circuits, creating custom digital logic, or routing signals in microcontroller projects, the 74153 is a dependable component to include in your parts inventory.

Ordering and Notes

When ordering, verify the package type (DIP) to ensure compatibility with sockets and breadboards. Note: Images are for illustration purposes only.

Technical Resources

  • Datasheets and manufacturer application notes provide detailed electrical characteristics, timing diagrams, and pinouts. Refer to the official datasheet for exact specifications and absolute maximum ratings before designing into production systems.
