74151 8-Input Multiplexer IC (DIP)

Overview of the 74151 8-Input Multiplexer IC (DIP)

The 74151 8-Input Multiplexer IC (DIP) is a high-speed TTL multiplexer designed to select one of eight data inputs and present it on a single output line. As a member of the 74-series logic family, the 74151 offers reliable performance for digital logic, control systems, and communication designs. Its compact Dual In-Line Package (DIP) makes it simple to use on breadboards, prototyping boards, and custom PCBs.

Core Functionality

• Addresses eight parallel inputs using three select lines labeled A, B, and C.
• Transmits the selected input to a single output, simplifying signal routing in complex systems.
• Includes a strobe (enable) input to gate or disable output operation as needed.
• Provides both true (Y) and complementary (W) outputs for flexible logic interfacing.

Key Features

• 8 data inputs with 3 selection lines for full addressing range
• True and complement outputs (Y and W) for direct active and inverted signals
• Strobe (enable) input to control selection and output activation
• High-speed TTL logic operation suitable for many digital designs
• Standard DIP package for easy insertion, removal, and prototyping
• Broad applicability across digital electronics, control systems, and communications

How the 74151 Works

The 74151 uses a binary-coded selection scheme. The three select inputs (A, B, C) represent a 3-bit binary number that selects which of the eight data inputs is routed to the output. The strobe input enables or disables the output so the multiplexer can be gated by external control logic. Both the true and inverted outputs allow direct use in circuits that require either polarity without an additional inverter stage.

Typical Applications

• Data routing and bus selection in digital systems
• Arithmetic Logic Units (ALUs) and combinational logic blocks
• Signal selection in communication and switching systems
• Education, prototyping, and hobbyist digital projects

Prototyping and Integration Tips

• Use the DIP package on a solderless breadboard for quick testing and circuit validation.
• Pull unused inputs to defined logic levels to prevent floating inputs and unpredictable outputs.
• Use the strobe input to synchronize or gate the multiplexer within larger control logic.
• Combine multiple multiplexers for wider data buses or expanded input selection.

Ordering, Packaging, and Compatibility

The 74151 is commonly available in a standard DIP package that is compatible with most through-hole prototyping workflows. It follows the 74-series TTL logic conventions, making it interchangeable with other TTL components in logic-level systems. When designing PCBs, ensure correct pin mapping and decoupling capacitors for stable TTL operation.

Why Choose the 74151 8-Input Multiplexer

The 74151 combines speed, versatility, and ease of use for many digital applications. Its dual outputs, enable control, and DIP packaging make it a practical choice for students, engineers, and hobbyists who need reliable, well-understood multiplexer functionality.

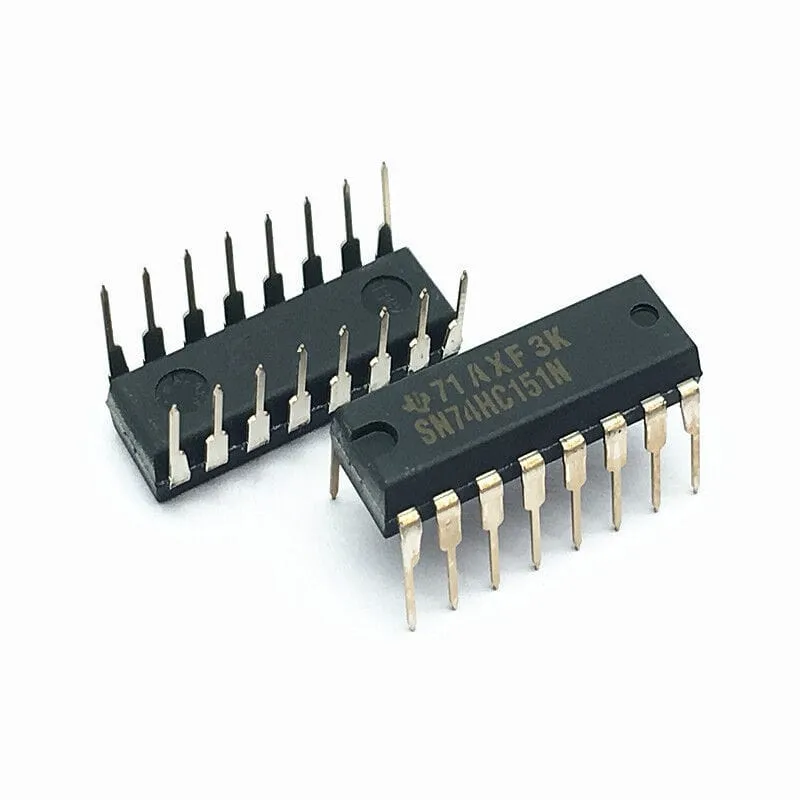

Note: Images are for illustration purposes only.
