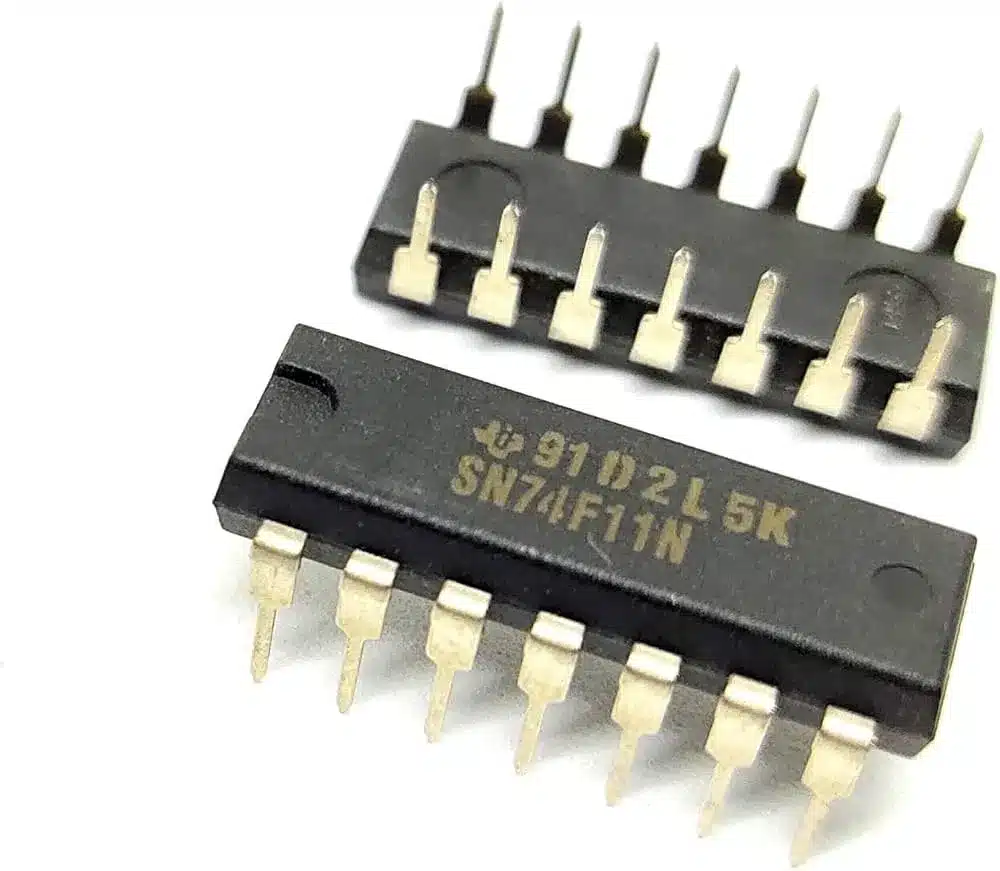

The 7411 Triple 3-Input AND Gate IC (DIP) is a standard 74xx TTL logic device that integrates three independent 3-input AND gates in one 14-pin package. It’s perfect for building decision logic that requires three conditions to be true, as well as enable/control logic, decoding, and timing/sequencing circuits. The DIP package is breadboard-friendly, making it ideal for student labs, prototyping, and embedded designs.
Key Features
- Three independent 3-input AND gates (triple AND)
- TTL 74xx family; typical 5V operation (4.75–5.25V)
- High-speed switching with reliable TTL thresholds
- Inputs/outputs TTL/CMOS compatible (with proper interfacing)
- DIP-14 package for easy breadboard and PCB use
- Low power, stable operation for educational and production circuits
Applications
- Multi-condition logic (only TRUE when all three inputs are HIGH)
- Enable/disable gating and control logic
- Address decoding, chip-select logic, and bus control
- Timing/sequencing and state-machine building blocks
- Microcontroller/FPGA interfacing and rapid prototyping
- Educational kits and digital logic training
