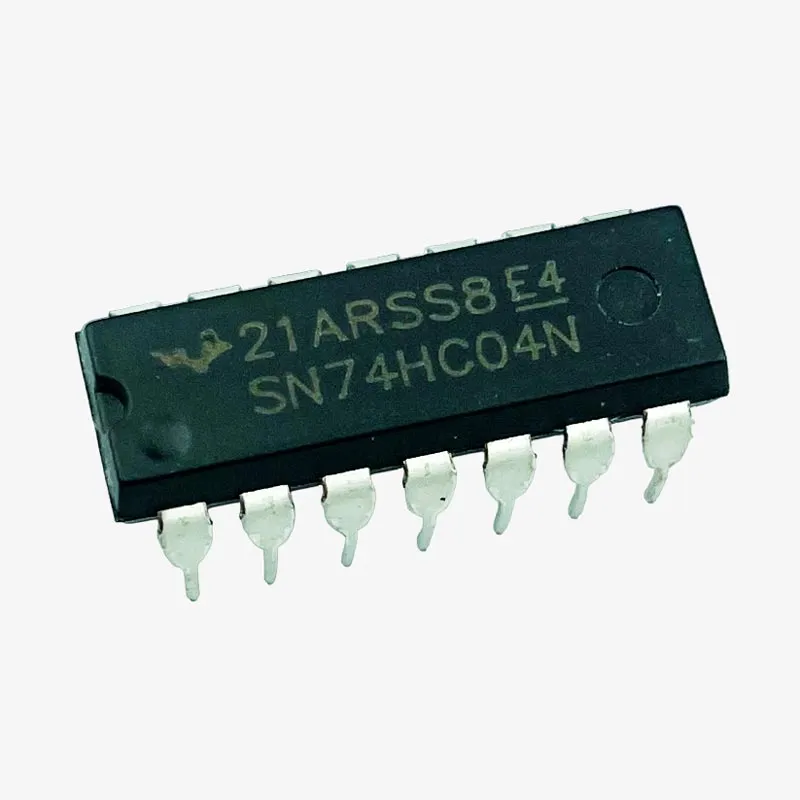

The 7404 Hex Inverter NOT Gate IC (DIP) is a widely used digital logic IC from the 74xx TTL family. It contains six independent NOT gates (inverters), each performing the basic logic inversion function. A NOT gate outputs the opposite logic level of its input, making the 7404 an essential building block in digital electronics.
The IC is commonly used in signal inversion, logic manipulation, waveform generation, and timing circuits. Its reliable TTL performance, standard 14-pin DIP packaging, and high-speed operation make it perfect for breadboard prototyping, educational use, and professional circuit design.
Key Features:
- Hex Inverter IC (6 independent NOT gates in one chip)
- TTL 74xx logic family, standard performance
- Operating voltage: 4.75V to 5.25V (typical 5V supply)
- High-speed switching with reliable output
- Standard 14-pin DIP package for easy prototyping
- Breadboard and PCB friendly design
Applications:
- Logic signal inversion
- Digital circuit design and manipulation
- Waveform shaping and timing circuits
- Oscillator and clock circuits
- Educational labs, training kits, and DIY electronics projects
