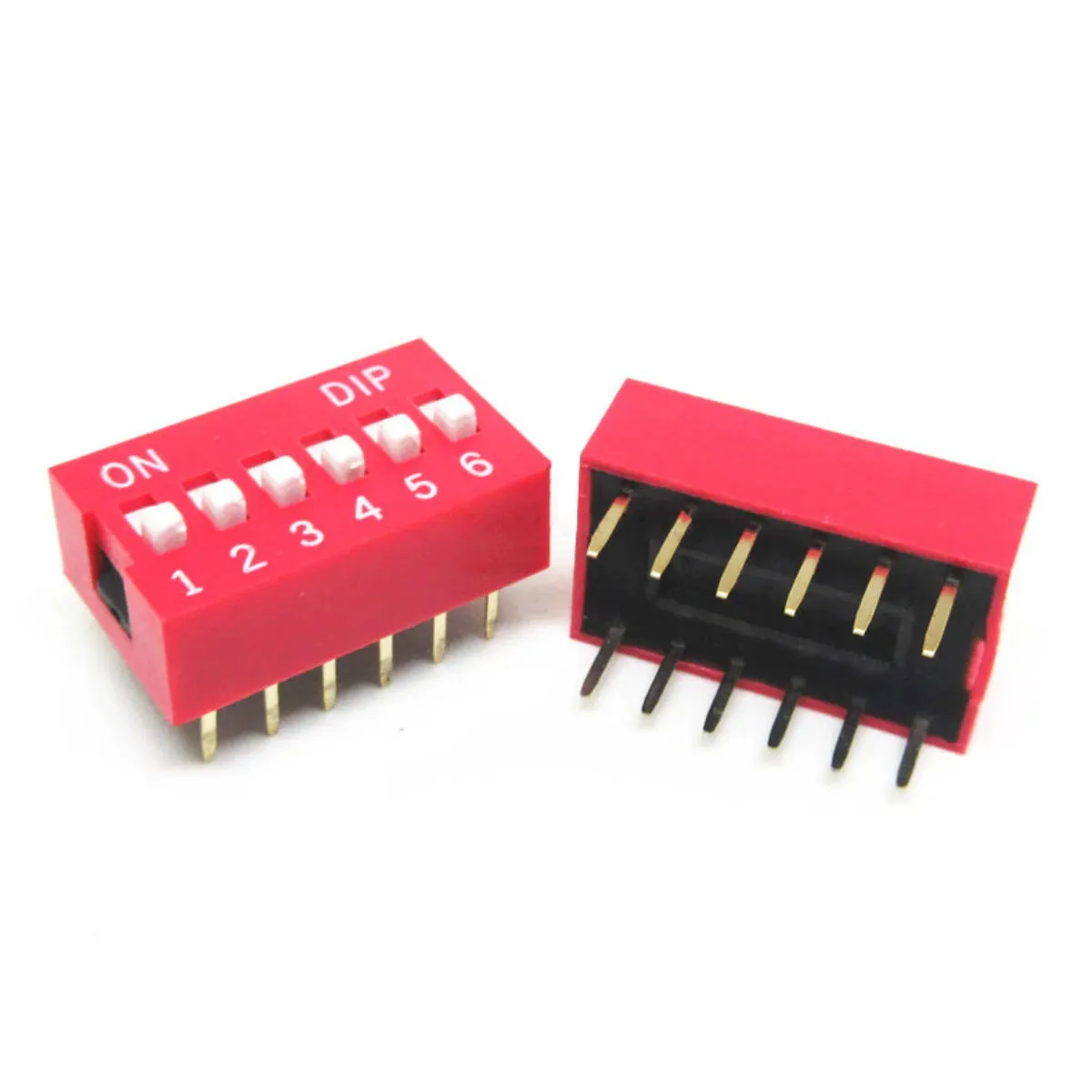

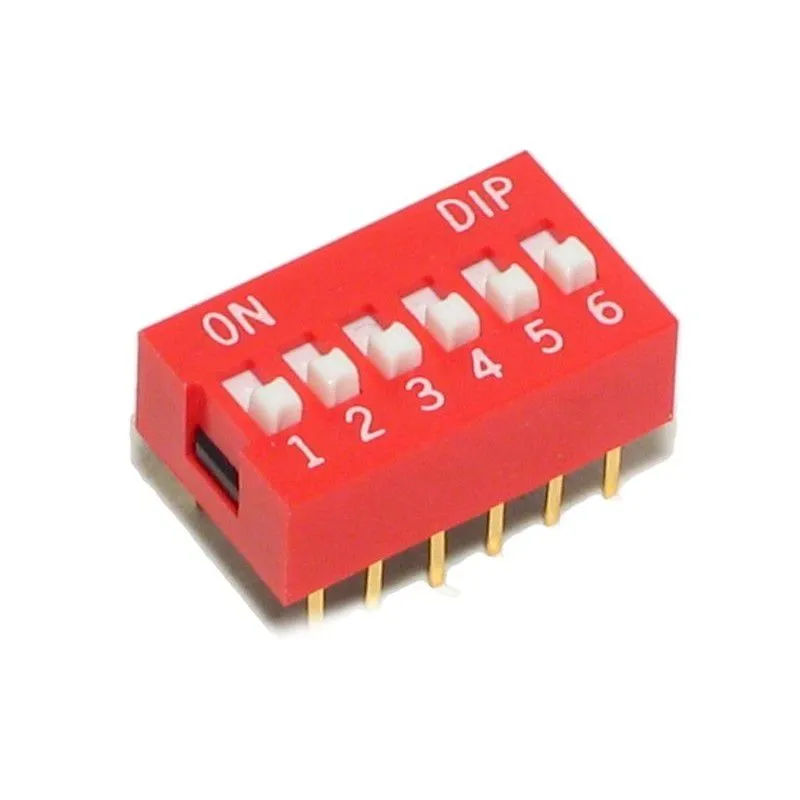

6-Way Dip Switch SPST Slide Switch (2.54mm)

6-Way DIP Switch SPST Slide Switch (2.54mm) – Product Overview

The 6-Way DIP Switch SPST Slide Switch (2.54mm) is a compact and reliable configuration component for digital and electronic circuits. It contains six independent SPST (Single Pole Single Throw) slide switches in a dual in-line package, enabling multiple configuration options in a small footprint. Each switch operates independently, making this module perfect for address selection, mode setting, data input, and feature control in microcontroller and embedded systems.

Key Features

• 6 independent SPST slide switches in one compact DIP module
• Standard 2.54mm pin pitch for breadboard, perfboard, and PCB compatibility
• Gold-plated terminals for superior electrical contact and long-term durability
• Clear ON/OFF indicators for quick and accurate configuration
• Smooth sliding mechanism with tactile feedback for secure operation
• Durable plastic enclosure with long mechanical life and through-hole mounting
• Easy to integrate for quick reconfiguration without complex wiring

Specifications

• Type: DIP Slide Switch
• Number of Switches: 6
• Switch Type: SPST (Single Pole Single Throw)
• Pitch: 2.54mm
• Contact Resistance: ≤ 50mΩ
• Insulation Resistance: ≥ 100MΩ
• Dielectric Strength: 500V AC/min
• Rated Voltage: Up to 24V DC
• Rated Current: 25mA (typical)
• Operating Temperature: -20°C to +85°C
• Mechanical Life: 2000+ cycles per switch
• Mounting Type: Through-hole
• Material: Durable plastic body with gold-plated contacts

Compatible Applications

• Microcontroller-based systems (Arduino, Raspberry Pi, STM32, etc.)
• Digital logic circuits for setting control or address lines
• Embedded system configuration and function selection
• Testing and debugging tools for controlling circuit behavior
• Industrial control panels and automation setups
• Communication systems for mode and address configuration

Installation Tips and Best Practices

• Confirm correct orientation when inserting into breadboards or PCBs; the 2.54mm pitch matches standard headers.
• Use pull-up or pull-down resistors on microcontroller inputs to avoid floating inputs when switches are open.
• For critical signal paths, verify contact resistance and consider redundant inputs if needed for reliability.
• Do not exceed the rated voltage and current to maintain long-term performance of gold-plated contacts.
• If soldering, apply heat carefully to avoid deforming the plastic body; through-hole mounting offers secure mechanical attachment.

Why Choose This 6-Way DIP Switch

This 6-way DIP switch offers a balance of compact size, clear user feedback, and robust electrical performance. The gold-plated contacts provide low contact resistance and resistance to corrosion, while the tactile sliding action ensures reliable operation for configuration and selection tasks in both hobbyist and industrial environments.

Note: Images are for illustration purposes only.
