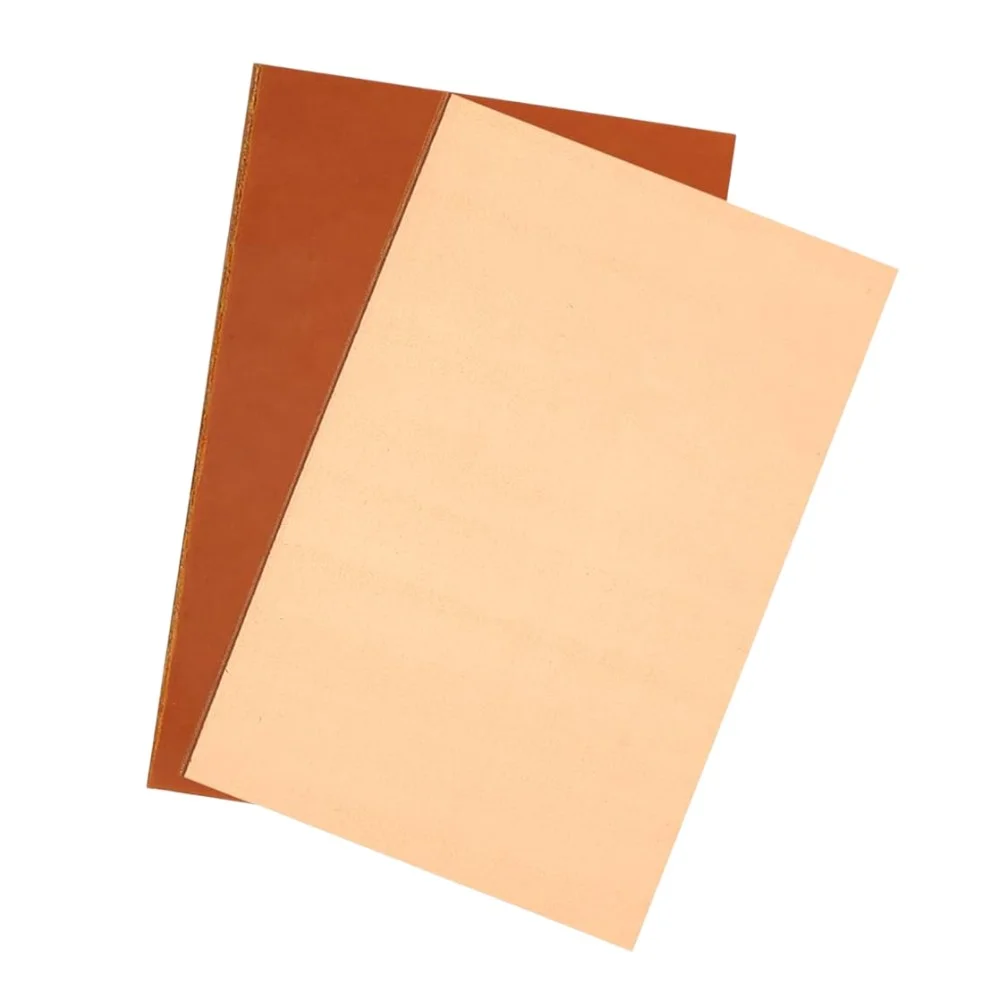

5×12 Inch Single Sided Bakelite PCB Board

Overview

The 5×12 Inch Single Sided Bakelite PCB Board is an economical and practical copper clad board for prototyping and basic circuit fabrication. Made from phenolic paper known as Bakelite, it offers a low-cost substrate option for hobbyists, educators, and anyone building simple analog or digital circuits. The board is easy to machine, drill, and etch, making it an excellent choice for hand-crafted PCBs and small production runs.

Key Features of the 5×12 Inch Single Sided Bakelite PCB Board

• Bakelite (Phenolic) Material: Cost-effective substrate suitable for low- to medium-power applications.
• Single Sided Copper Clad: Copper layer on one side simplifies layout and etching for straightforward circuits.
• Large Work Area: 5 × 12 inch surface allows multiple small PCBs or larger single-board layouts.
• Typical Thickness: Board thickness around 1.6 mm with copper thickness typically 1 oz (35 µm).
• Workability: Can be cut, drilled, filed, and etched using basic workshop tools.
• Surface Finish: Bare copper finish ready for etching and soldering after cleaning.

Technical Specifications

• Board Type: Copper Clad PCB Board
• Material: Bakelite / Phenolic Paper
• Copper Sides: Single sided
• Board Size: 5 × 12 Inches
• Copper Thickness: Typically 1 oz (35 µm)
• Board Thickness: Typically 1.6 mm
• Surface Finish: Bare Copper
• Color: Brown (typical)

Applications

• DIY electronics and hobby projects
• Educational and training circuit boards
• Simple analog and digital circuits
• Power supply and control boards for low- to medium-power use
• Prototype and one-off PCB fabrication

Advantages

• Lower cost compared to FR4 boards, ideal for learning and experimentation
• Simple processing for hand etching and small workshops
• Good mechanical stability for basic assemblies
• Readily available and easy to store

Safety and Handling

• Avoid excessive bending to reduce the risk of cracking.
• Use proper eye protection and dust extraction while cutting or drilling.
• Store in a dry place to limit copper oxidation and preserve surface quality.
• Handle chemicals for etching with appropriate gloves and ventilation.

How to Work With This PCB Board

For best results when prototyping with this Bakelite PCB board:

• Clean the copper surface with a fine abrasive and degreaser before etching or soldering.
• Use a quality resist method for etching, such as toner transfer or photoresist, depending on your workflow.
• Drill component holes with sharp carbide tips and secure the board flat to prevent chipping.
• After etching, neutralize and rinse the board, then apply a thin coating or varnish to slow copper oxidation if long-term storage is needed.

Ordering Information and Notes

Ideal for educators, hobbyists, and makers looking for an affordable, easy-to-work PCB substrate. Quantities and copper thickness may vary slightly by batch. Note: Images are for illustration purposes only. Actual product color, copper thickness, and appearance may vary slightly.
