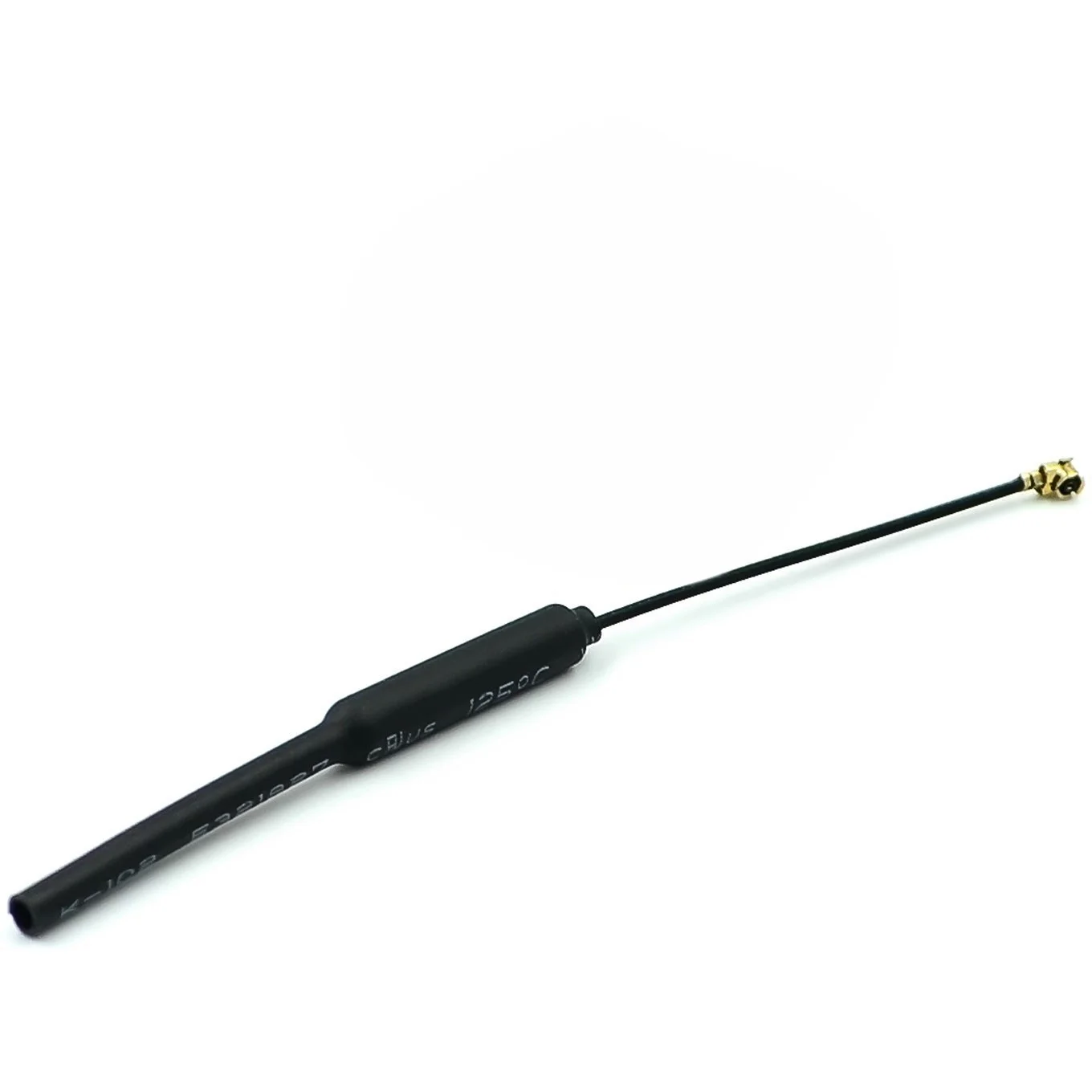

433MHz Antenna for LoRa Ra-02 Module

433 MHz Antenna for LoRa RA-02 Module — Overview

The 433 MHz Antenna for LoRa RA-02 Module is a high-performance external RF antenna engineered for long-range, low-power IoT communications. Precisely tuned for the 433 MHz ISM frequency, this antenna improves signal strength, transmission distance, and link reliability for LoRa RA-02 and similar 433 MHz RF modules.

Key Benefits

• Improved wireless range and link stability for LoRa-based devices
• Low VSWR and 50 ohm impedance for efficient power transfer
• Compact and lightweight design ideal for portable and space-constrained projects
• Simple plug-and-play installation without circuit modification
• Suitable for indoor and outdoor sensor networks, telemetry, and automation

Technical Specifications

• Frequency Range: 433 MHz
• Antenna Type: External RF Antenna
• Impedance: 50 Ω
• VSWR: Low VSWR for efficient signal transmission
• Polarization: Linear
• Connector Type: Compatible with RA-02 antenna interface
• Material: High-quality RF conductor with insulated coating
• Color: Black (typical)

Applications

• LoRa RA-02 wireless communication modules
• IoT sensor networks and remote monitoring
• Smart agriculture and environmental sensing
• Home automation and wireless control projects
• Long-range telemetry, asset tracking, and RF experimentation

Advantages for LoRa Projects

• Extends wireless communication range for fewer gateways and repeaters
• Improves packet reliability and reduces retransmissions
• Easy installation allows rapid prototyping and deployment
• Robust performance in both indoor and outdoor environments when properly installed

Installation and Safety Notes

• Ensure the antenna is securely connected to the RA-02 module before powering the RF transmitter
• Never operate the transmitter for extended periods without an antenna attached, as this may damage the RF output stage
• For outdoor installations use appropriate enclosures, sealing, and grounding to protect against weather and static
• Place the antenna clear of large metal surfaces and other RF sources for best performance

Compatibility and Integration Tips

This antenna is designed for direct compatibility with LoRa RA-02 modules and other 433 MHz radio modules that use the same antenna interface and 50 ohm impedance. For optimal results, match impedance and minimize feedline loss by using short, high-quality coaxial connections and proper connectors.

Ordering Information

When ordering, verify the connector type and physical fit with your RA-02 module and enclosure. Typical color is black and the product ships as a single external antenna unit unless otherwise specified.

Note: Images are for illustration purposes only. Actual product size and appearance may vary slightly.
