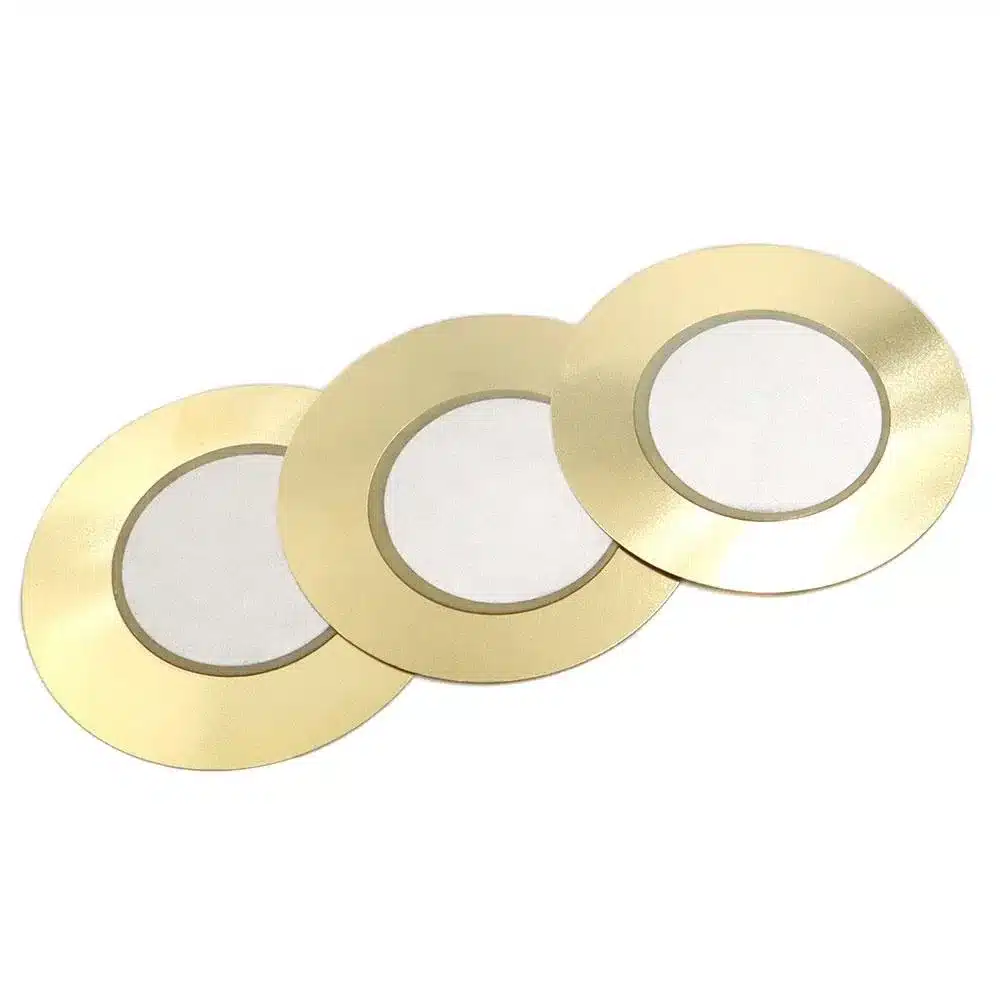

41mm Piezoelectric Ceramic Brass Disc (XHXDZ-41MM)

Availability:

Available on backorder


  • 41mm piezoelectric ceramic disc with brass backing
  • Brass plate bonded to a piezoelectric ceramic layer for strong vibration
  • Converts electrical signals (AC or pulsed DC) into audible and ultrasonic sound
  • Larger diameter for higher sound output and stronger vibrations
  • Lightweight, low-power design ideal for buzzers, transducers, and sensors
  • Perfect for DIY electronics, Arduino projects, and experimental applications

41mm Piezoelectric Ceramic Brass Disc (XHXDZ-41MM)

The 41mm Piezoelectric Ceramic Brass Disc (XHXDZ-41MM) is a high-output piezo element engineered for sound generation, ultrasonic sensing, alarms, and custom electronics. Built from a brass base plate with a bonded piezoelectric ceramic layer, the disc converts electrical signals into mechanical vibrations to produce sound and ultrasonic waves.

Why choose this 41mm piezoelectric ceramic brass disc?

  • Large 41mm diameter provides greater surface area for stronger vibrations and higher sound output compared to smaller discs.
  • Brass backing improves acoustic coupling and durability for reliable long-term operation.
  • Operates efficiently on low power and works with AC or pulsed DC drive signals.
  • Lightweight and compact for easy integration into enclosures, sensors, and DIY builds.

Key Features

  • Model: XHXDZ-41MM
  • Diameter: 41mm
  • Material: Brass base plate with piezoelectric ceramic layer
  • Thickness: Approx. 0.5mm
  • Drive: AC or pulsed DC
  • Usage: Sound transducer, ultrasonic sensor, buzzer element

Applications

  • Piezo buzzers and sounders for alarms and notifications
  • Ultrasonic transducers and proximity sensors
  • Signal generators and experimental sound projects
  • Microcontroller and Arduino-based prototypes
  • DIY electronics, research, and educational experiments

Installation and Usage Tips

  • Drive the disc with an AC or pulsed DC signal; polarity and waveform will affect output and resonance.
  • Mount on a rigid surface or cavity to enhance acoustic output; ensure secure but not overly restrictive bonding to preserve vibration.
  • Use impedance-matching circuits or simple driver transistors for higher output in buzzer applications.
  • Test different enclosure shapes and mounting positions to tune frequency response and loudness for your project.

Benefits for Designers and Hobbyists

  • High sound output with minimal current draw, ideal for battery-powered devices.
  • Durable brass-backed construction for long operational life in both hobby and light industrial settings.
  • Versatile compatibility with common electronics platforms like Arduino and Raspberry Pi.

Specifications

  • Model: XHXDZ-41MM
  • Type: Piezoelectric Ceramic Brass Disc
  • Diameter: 41mm
  • Thickness: Approx. 0.5mm
  • Material: Brass + Piezoelectric ceramic
  • Typical Uses: Sound transducer / ultrasonic sensor / experimental element

Note: Images are for illustration purposes only.
