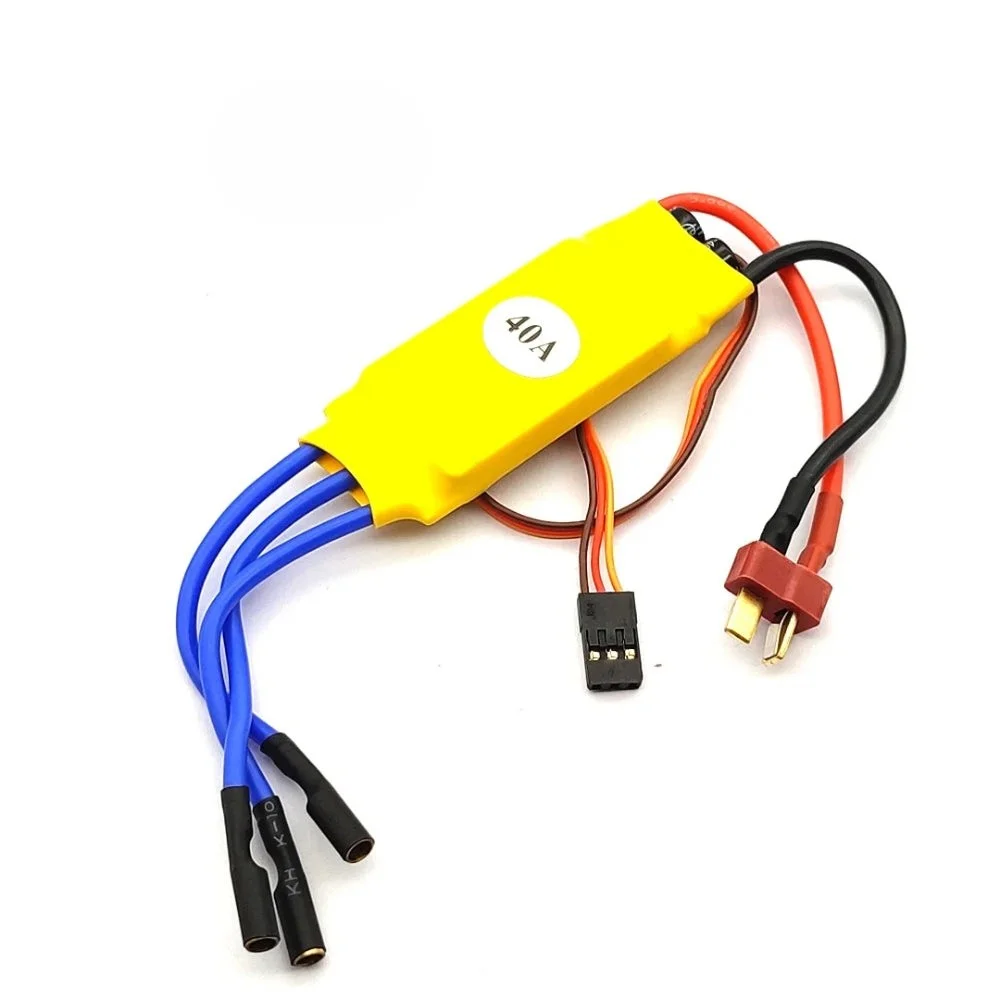

40A Electronic Speed Controller ESC for Brushless Motors

The 40A Electronic Speed Controller (ESC) is a high-performance motor control module designed for brushless DC (BLDC) motors. It efficiently regulates motor speed, direction, and braking by converting DC battery input into controlled three-phase output signals. This ESC is widely used in RC aircraft, drones, quadcopters, boats, and robotics projects.

Engineered for reliability and smooth operation, the 40A ESC supports fast throttle response and stable performance, making it ideal for both hobbyists and professional applications.

Key Features

• High Current Capacity: Supports up to 40 Amps continuous current
• Brushless Motor Support: Specifically designed for BLDC motors
• Wide Voltage Compatibility: Works with 2S–4S Li-Po batteries (7.4V – 14.8V)
• Built-in BEC (Battery Eliminator Circuit): Provides regulated 5V output for receiver and servos
• Fast Throttle Response: Smooth and precise speed control
• Thermal Protection: Prevents overheating damage
• Over-Current Protection: Ensures safe operation under load
• Low Voltage Cutoff: Protects battery from deep discharge
• Compact & Lightweight Design

Technical Specifications

• Continuous Current: 40A
• Burst Current: Up to 55A (short duration)
• Input Voltage: 7.4V – 14.8V (2–4S Li-Po)
• BEC Output: 5V / 2A (typical)
• Control Signal: PWM (standard RC signal)
• Connector Type: May vary (XT60 / T-Plug / bare wires)
• Motor Compatibility: Sensorless Brushless Motors
• Cooling: Air-cooled with heat-shrink casing

Working Principle

The ESC receives a PWM signal from a receiver or microcontroller (like Arduino or flight controller) and converts it into three-phase AC signals required to drive a brushless motor. By adjusting the pulse width, the ESC controls the motor’s speed:

• Low PWM signal → Low speed
• High PWM signal → High speed

The ESC continuously monitors voltage, current, and temperature to ensure safe and efficient operation.

Applications

• RC airplanes and helicopters
• Quadcopters and drones
• RC cars and boats
• Robotics and automation systems
• DIY brushless motor control projects

Advantages

• Efficient power conversion
• Smooth and precise motor control
• Built-in safety protections
• Easy integration with RC systems and microcontrollers
• Compact and lightweight

Usage Tips

• Always match ESC current rating with motor requirements
• Ensure proper cooling during high-load operation
• Calibrate throttle range before first use
• Use quality connectors and proper soldering for high current paths
• Never exceed recommended voltage range
