3IN1 Display Adjustable voltage and Current protection device 63A ARIK

Overview

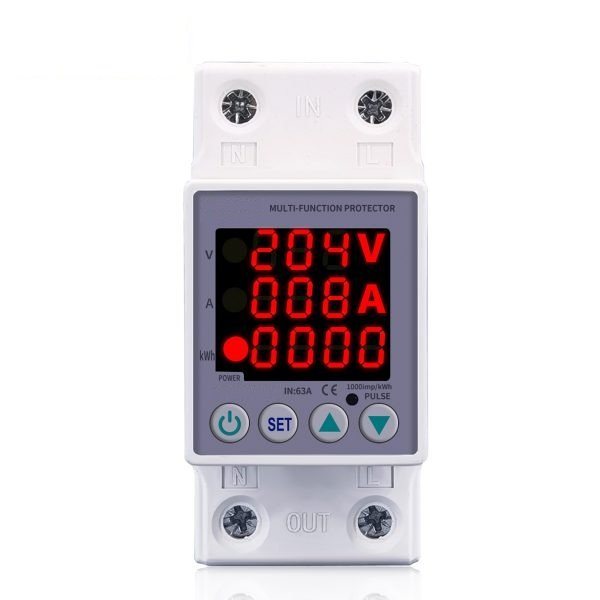

The ARIK 3IN1 Display Adjustable voltage and Current protection device is a compact, configurable protection unit providing adjustable over-voltage, under-voltage and over-current protection up to 63 A. Engineered to safeguard electrical equipment and circuits, this three-in-one device consolidates essential protections into a single display-equipped module.

Key Features

• Three-in-one protection: over-voltage, under-voltage and over-current in one unit
• Adjustable protection thresholds for tailored system protection
• Clear display model for easy monitoring and configuration
• Supports adjustable current settings from 1 to 63 A
• Compact design for straightforward panel installation

Adjustable Voltage Protection

• Over-voltage adjustable range: 230 to 300 V
• Under-voltage adjustable range: 140 to 210 V

Adjustable Current Protection

• Over-current adjustable range: 1 to 63 A
• Rated maximum current: 63 A

Technical Specifications

• Model: 3IN1 Display protection device (ARIK)
• Over-voltage range: 230-300 V (adjustable)
• Under-voltage range: 140-210 V (adjustable)
• Over-current range: 1-63 A (adjustable)
• Maximum current: 63 A

Benefits

• Protects equipment from damaging voltage spikes and sags
• Prevents overloads by limiting current with adjustable trip settings
• Reduces downtime by centralizing protection controls in one device
• Easy to set up and adjust to match system requirements

Installation and Compatibility

The ARIK 3IN1 Display device is designed for integration into electrical distribution panels and protective schemes where adjustable voltage and current protection is required. Configure thresholds to match local supply conditions and the needs of connected loads. Always follow local electrical codes and manufacturer installation instructions when installing protective devices.

Why Choose the ARIK 3IN1 Display Protection Device

• All-in-one protection saves panel space and simplifies wiring
• Adjustable settings provide flexibility for different applications
• Clear display helps with quick configuration and status checks
• Reliable 63 A rating suitable for a wide range of small to medium loads
