2WD Arduino Bluetooth Controlled Robot (Unassembled)

Overview

The 2WD Arduino Bluetooth Controlled Robot (Unassembled) is a beginner-friendly robotics kit that combines Arduino programming, motor control and wireless communication. With Bluetooth connectivity and an Arduino UNO controller, this kit lets you control a two-wheel drive robot from a smartphone, tablet or computer. It is ideal for students, hobbyists and educators who want hands-on experience with robotics and IoT projects.

Key Features

• Bluetooth controlled operation using HC-05 for wireless commands from mobile apps
• Arduino UNO R3 based open-source platform for easy coding and customization
• L298N motor driver module for stable H-bridge control of two DC gear motors
• Strong transparent acrylic chassis to mount electronics securely
• 2WD platform with geared DC motors and high-traction rubber wheels for good maneuverability
• Expandable design compatible with ultrasonic, IR and other sensors for autonomous functions

Specifications

• Controller Board: Arduino UNO R3
• Motor Driver: L298N Module
• Communication: Bluetooth HC-05
• Power Supply: 2 x 18650 Li-ion batteries
• Chassis Type: 2WD Acrylic Robot Platform
• Motors: 2 x DC Gear Motors (3-12V)
• Wheels: High-traction rubber wheels
• Caster Wheel: 1 x Universal caster wheel

How It Works

1. Pair the HC-05 Bluetooth module with your smartphone.
2. Open a Bluetooth controller app from the Play Store or App Store.
3. Use on-screen directional buttons to send movement commands.
4. The Arduino UNO reads serial commands and uses the L298N motor driver to drive the motors accordingly.

Available Controls

• Forward, backward, left, right and stop via mobile app
• Custom commands available by modifying Arduino code

Learning Outcomes

• Understand Bluetooth communication protocols and serial interfacing with Arduino
• Learn DC motor control using an H-bridge driver
• Gain hands-on experience in Arduino programming, wiring and robotics design
• Explore IoT-based wireless applications and sensor integration

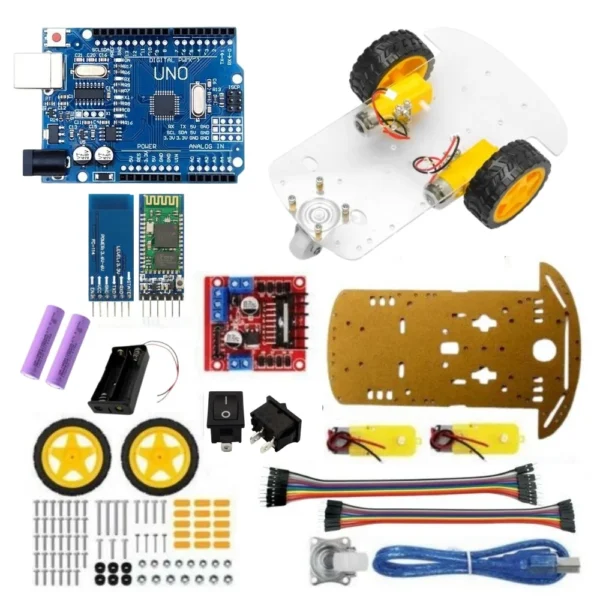

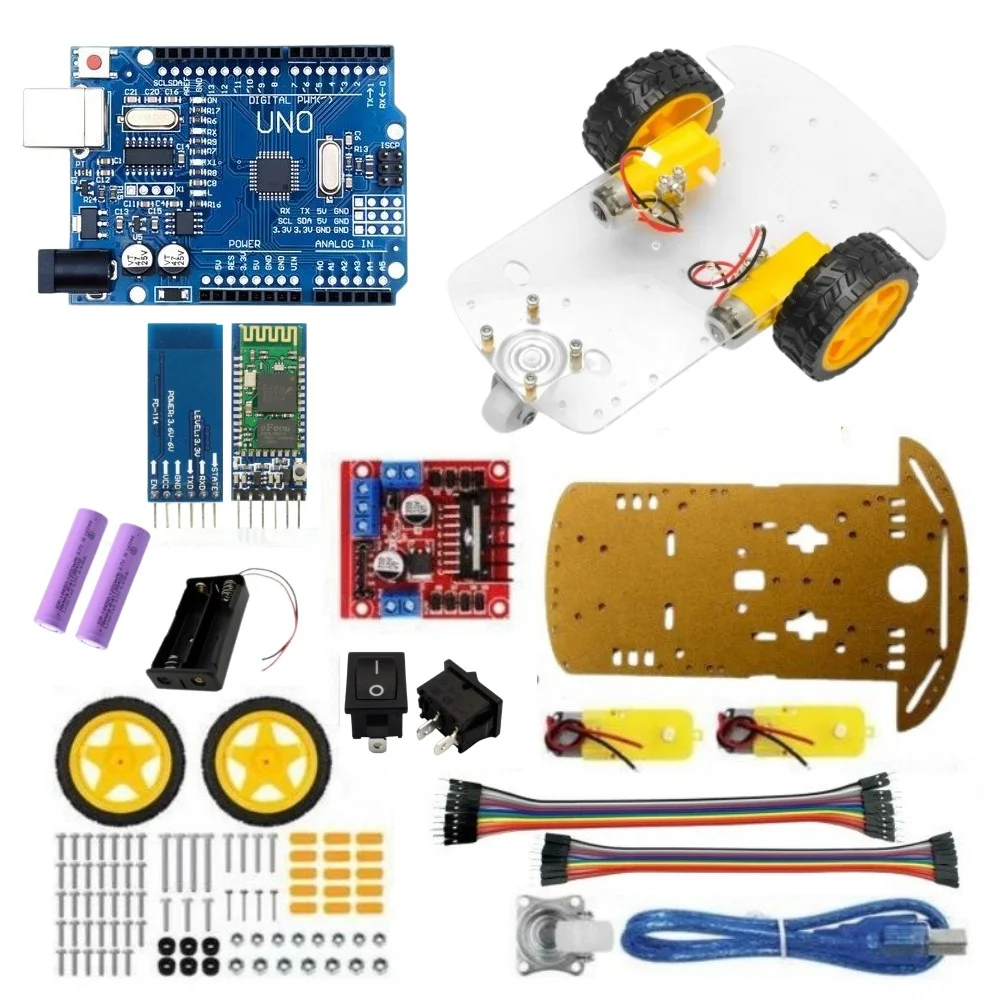

Package Includes

• Arduino UNO R3 Board with USB cable
• L298N motor driver module
• Bluetooth module (HC-05)
• 2 x 18650 cells and 2-cell battery holder
• 20 x jumper wires (10 M-M, 10 M-F)
• 2WD chassis assembly (motors, wheels, caster wheel, acrylic sheet, on/off switch, screws and nuts)

Applications

• Wireless controlled robot projects
• STEM education and classroom robotics
• DIY robotics and electronics workshops
• Arduino wireless communication experiments
• Bluetooth-based IoT prototype projects

Why Choose This Kit

• Available unassembled for hands-on learning and also as a fully assembled pre-tested plug and play option
• Perfect for students, hobbyists and beginners who want to learn Arduino and robotics
• Easy smartphone control via Bluetooth for immediate interaction
• Expandable with sensors and modules to add autonomous features
• Promotes practical skills in embedded systems, coding and electronics

Setup and Pairing Tips

• Charge the 18650 cells and install them in the battery holder observing correct polarity
• Power the Arduino and pair the HC-05 module from your phone Bluetooth settings (default pairing code may be 1234 or 0000)
• Install a simple Bluetooth controller app and test directional controls before adding sensors
• Use the Arduino IDE to upload provided example sketches and to customize behavior

Customization and Expansion

You can extend the kit by adding ultrasonic sensors for obstacle avoidance, IR sensors for line following, or light sensors for tracking. Modify the Arduino code to implement autonomous modes, PID motor control or integrate with IoT services for remote monitoring.

Safety and Maintenance

• Handle 18650 cells carefully and use a proper charger. Do not short circuit the batteries.
• Secure all wiring and fasteners to avoid loose connections during operation.
• Keep the chassis and motors free of debris to ensure smooth movement.

Support

If you need help assembling, wiring or programming the robot, consult the included documentation or contact customer support for example code, wiring diagrams and troubleshooting tips.

Note: Images are for illustration purposes only.
