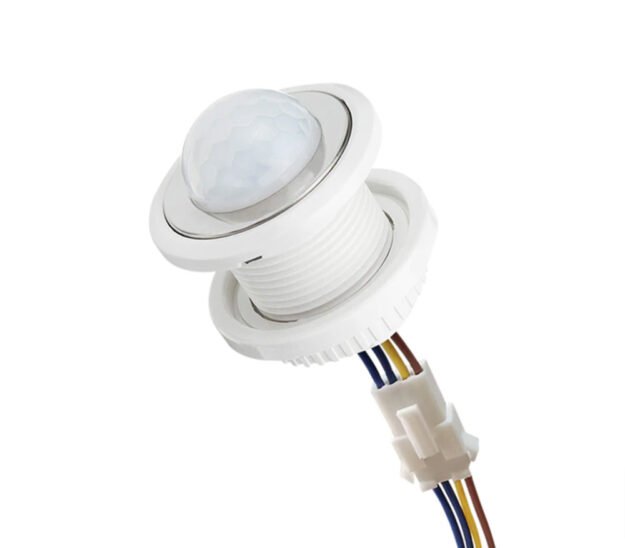

220V Motion and Day/Night Sensor Light Switch

220V Motion and Day/Night Sensor Light Switch Overview

The 220V Motion and Day/Night Sensor Light Switch is a compact, energy-efficient control device that automatically turns lights on or off based on motion and ambient light levels. Designed for AC100-240V systems, it delivers reliable sensing, low standby consumption, and flexible configuration for residential and commercial lighting.

Key Features

• Wide voltage support: AC 100-240V, 50/60 Hz for global compatibility
• Low power draw: standby consumption < 0.1 W to minimize energy waste
• Motion detection: effective sensing distance of 4–6 m with a 110° coverage angle
• Adjustable output: supports loads up to 40W (≤ 40W)
• Durable operation: suitable for temperatures from -10°C to +45°C

Technical Specifications

• Working Voltage: AC100-240V, 50/60 Hz
• Output Power: ≤ 40W
• Sensing Distance: 4-6 m
• Angle Coverage: 110°
• Standby Power Consumption: <0.1 W
• Operating Temperature Range: -10°C to +45°C

Modes and Time Delay Settings

This motion and day/night sensor includes flexible M1 mode settings and time delay options so you can adapt behavior to different spaces:

• Mode (M1): All day, Light Dark, Deep Dark — choose whether the sensor works continuously or only in low-light conditions
• Time Delay (M1): 3 seconds, 45 seconds, 4 minutes — set how long lights remain on after motion detection

Benefits of the 220V Motion and Day/Night Sensor Light Switch

• Energy savings by preventing lights from staying on when areas are unoccupied
• Improved convenience and safety with automatic lighting in corridors, entries, and work areas
• Flexible configuration to match different use cases and ambient light conditions
• Low standby power for minimal parasitic energy consumption

Recommended Applications

• Residential hallways, stairwells, basements, and porches
• Garages, storage rooms, and utility areas
• Commercial corridors, restrooms, and office entry points
• Outdoor covered areas within the specified temperature range

Installation and Setup Tips

• Confirm supply voltage is within AC100-240V before wiring.
• Install at a height and angle that allows unobstructed detection within the 4–6 m range and 110° coverage.
• Set the M1 mode according to ambient light: choose All day for continuous operation or Light Dark/Deep Dark to limit activation to low-light conditions.
• Start with a short time delay (3 seconds) during testing, then increase if longer hold times are needed.
• Avoid placing the sensor near HVAC vents or heat sources that may trigger false detections.

Operating and Safety Notes

• Do not exceed the maximum output power of 40W.
• Designed to operate reliably between -10°C and +45°C; avoid exposure beyond this range.
• For permanent installations, follow local electrical codes and consider using a qualified electrician.

Why Choose This Sensor Switch

The 220V Motion and Day/Night Sensor Light Switch combines simple installation, configurable sensing modes, and low standby consumption to deliver a cost-effective way to automate lighting. It is ideal for anyone seeking to reduce energy use while improving convenience and safety in indoor and sheltered outdoor spaces.
