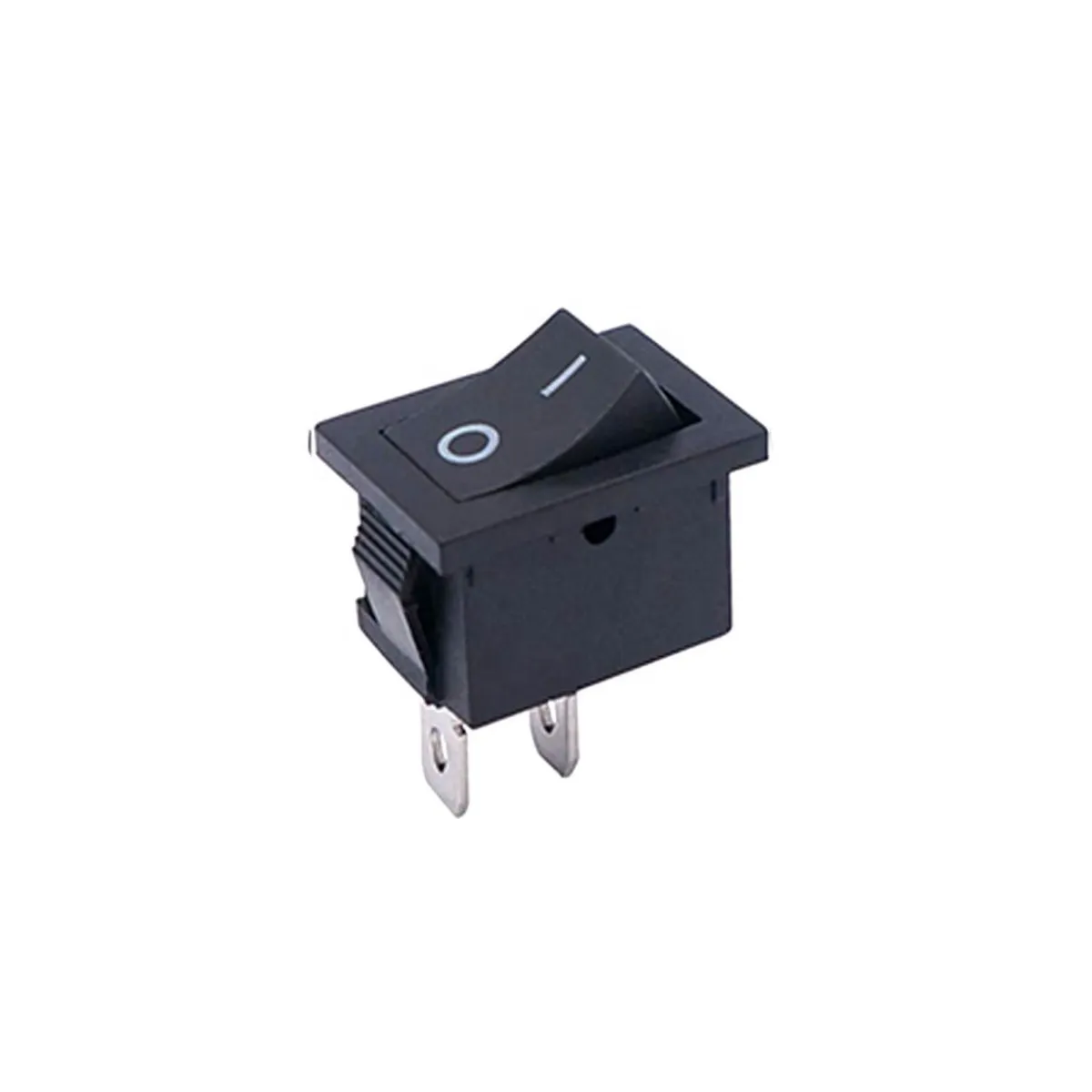

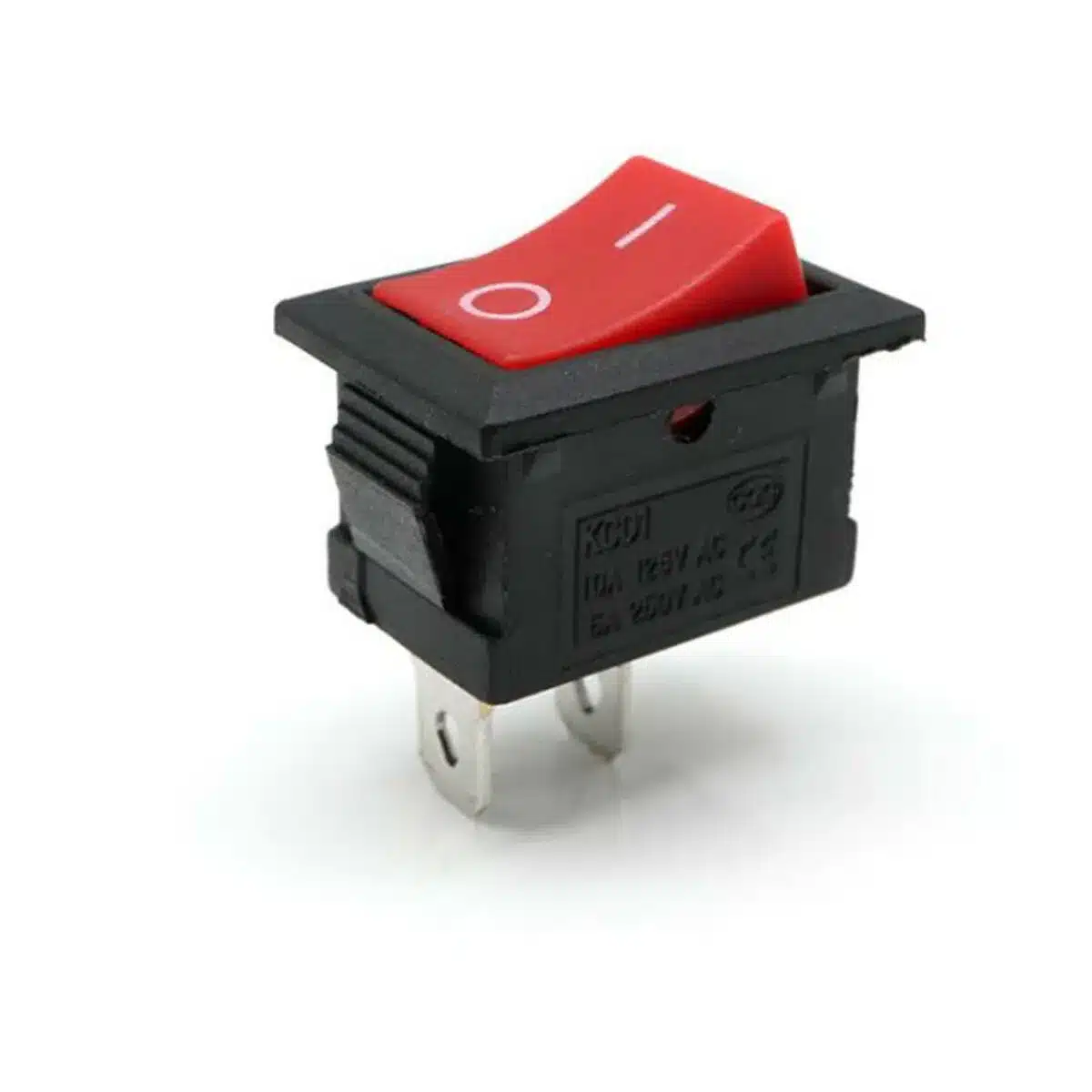

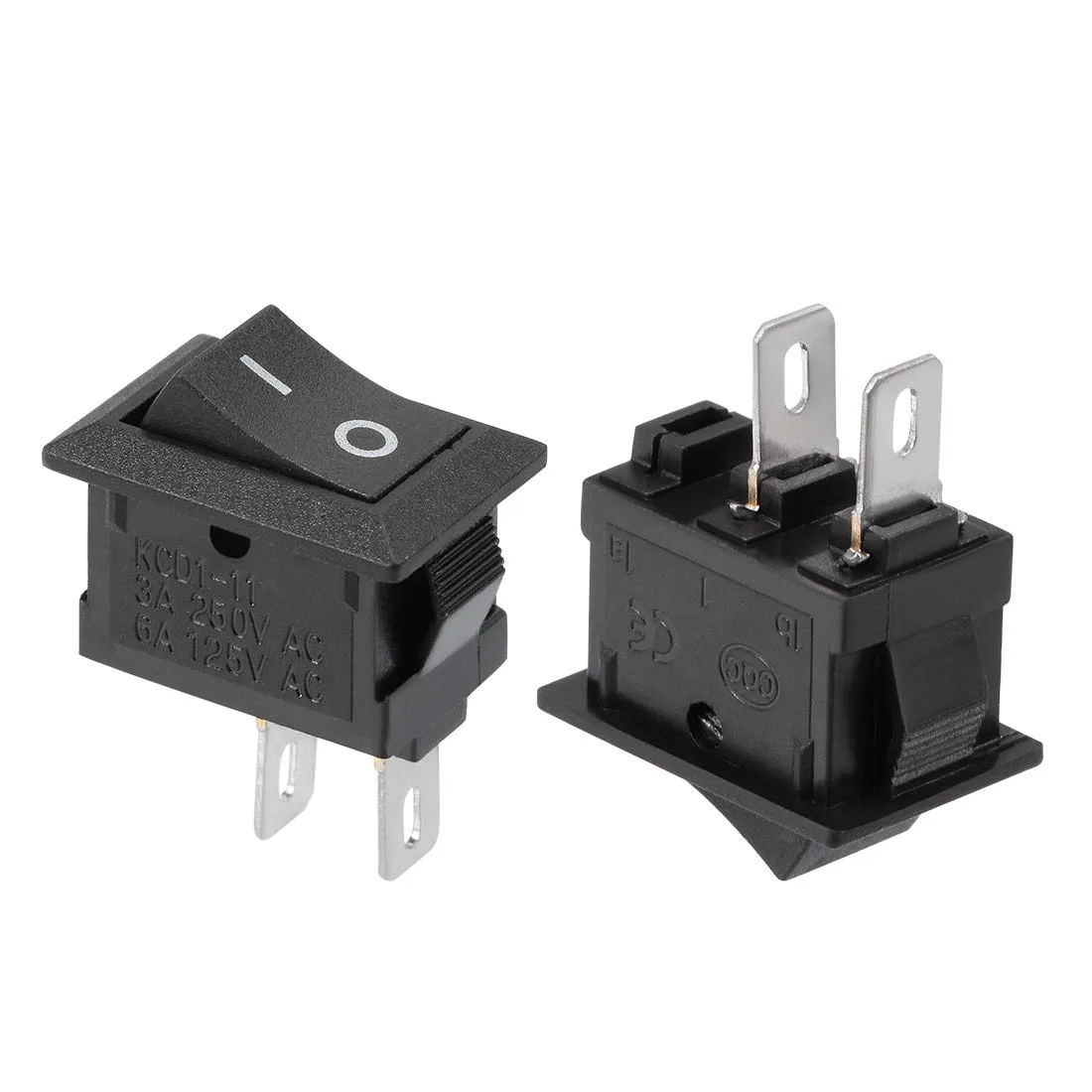

2-Pin On/Off Rocker Switch (Small)

Overview

The 2-Pin On/Off Rocker Switch (Small) is a compact, reliable SPST (Single Pole Single Throw) switch designed for straightforward power control in electronics and electrical projects. Its small rocker form factor and 2-pin connection make it a practical choice for low-voltage, low-current applications where simple ON/OFF functionality is required.

Key Features

• SPST (Single Pole Single Throw) 2-pin configuration for simple wiring and operation
• Compact rocker design saves space on control panels and enclosures
• Snap-in panel mount for fast, secure installation without screws
• Durable plastic body with quality metal contacts for long-lasting use
• Designed for low-voltage and small current applications
• Cost-effective solution for hobbyists, prototypers, and manufacturers

Specifications

• Switch Type: SPST (2-pin)
• Function: ON/OFF
• Terminals: 2-pin connection
• Mounting: Snap-in panel mount
• Material: Plastic body with metal contacts
• Size: Small rocker type

Common Applications

• DIY electronics and hobby circuits
• Robotics and small gadgets
• Toys and battery-operated devices
• Low-voltage circuits and prototypes
• Compact control panels and enclosures

Installation and Wiring Tips

• Ensure power is removed before wiring to avoid short circuits or injury
• Use appropriate wire gauge for your low-voltage application to maintain safe connections
• Insert the switch into the panel cutout until the snap-in mounting latches engage
• Verify correct polarity and secure terminal connections before powering the circuit

Benefits

• Simple ON/OFF control reduces circuit complexity and cost
• Small footprint lets you add switches to compact designs without sacrificing space
• Snap-in mount speeds assembly and maintenance
• Durable construction provides reliable operation in hobby and light industrial settings

Note: Images are for Illustration Purposes Only.
