2-Pin On/Off Rocker Switch (Big)

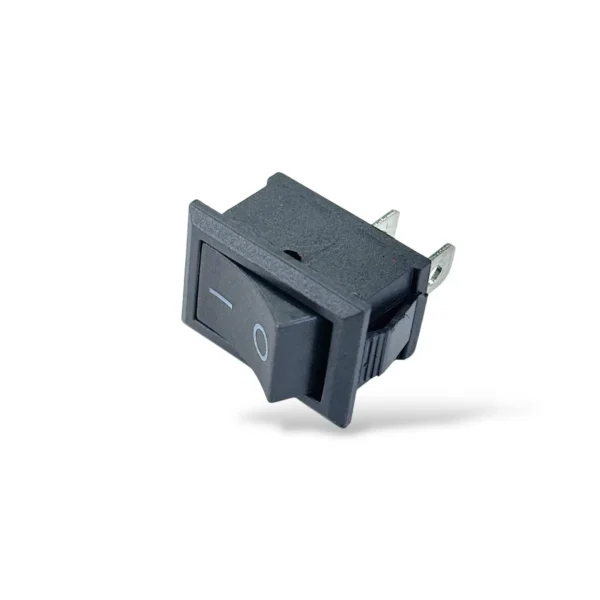

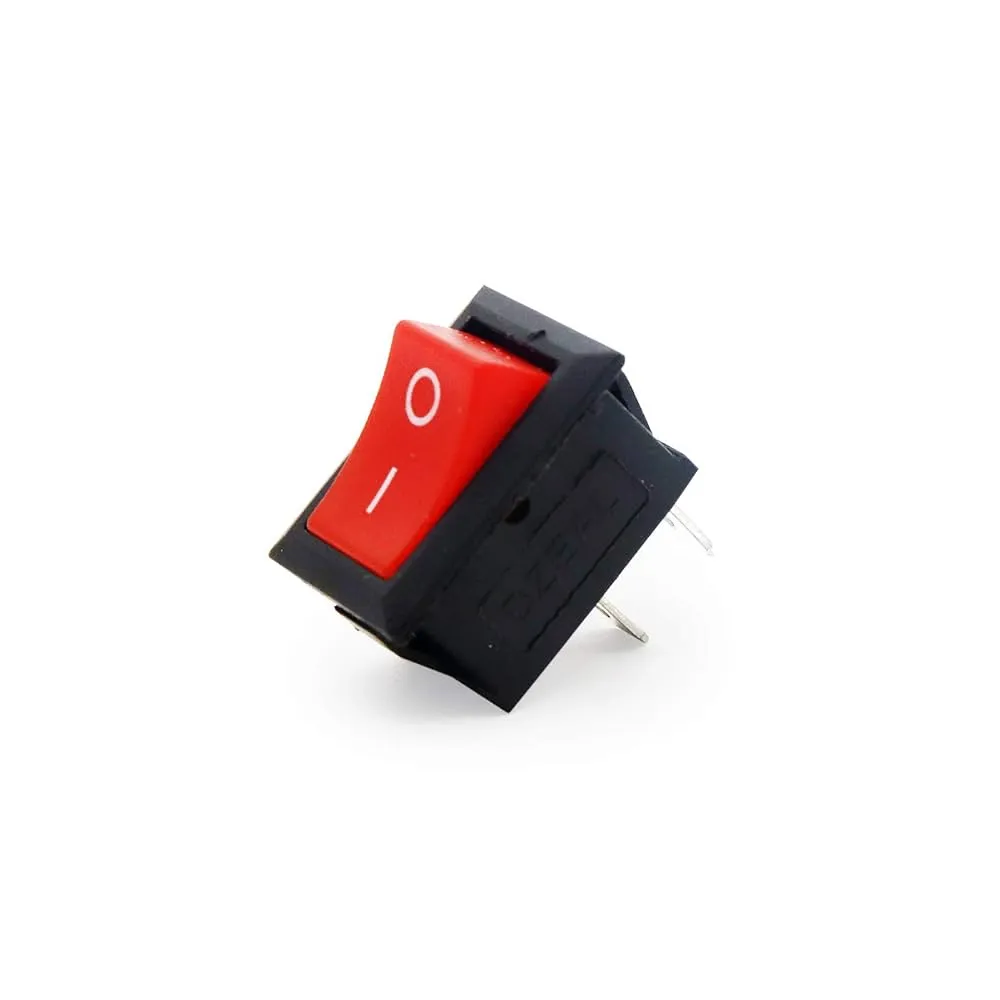

2-Pin On/Off Rocker Switch (Big) Overview

The 2-Pin On/Off Rocker Switch (Big) is a heavy-duty SPST rocker designed to provide reliable ON/OFF power control in a wide range of electronic and electrical systems. Its large rocker actuator offers clear, tactile feedback for safe operation and easier use compared to smaller switches. The snap-in panel mount makes installation quick and secure, making this switch a practical choice for hobbyists, technicians, and manufacturers.

Key Features

• Type: SPST (Single Pole Single Throw) 2-pin design for straightforward ON/OFF switching
• Large rocker button for easy operation and better user feedback
• Snap-in panel mount for quick installation without extra hardware
• Durable construction: plastic body with reliable metal contacts for extended service life
• Designed for high-load, low-voltage applications where a robust switch is required

Specifications

• Switch Type: SPST (2-pin)
• Terminals: 2-pin connection
• Mounting: Snap-in panel mount (panel cutout required)
• Function: ON/OFF
• Material: Plastic body with metal contacts
• Size: Big rocker type for improved usability

Common Applications

• Power control in DIY electronics and maker projects
• Household appliances and power strips
• Robotics, embedded circuits, and hobby electronics
• Automotive electronics and auxiliary power controls
• Control panels, test equipment, and industrial devices

Installation and Wiring

Wiring this 2-pin rocker switch is simple because of its SPST configuration. Follow these steps for a typical installation:

• Turn off power to the circuit before beginning any work.
• Prepare a panel cutout sized to the switch’s snap-in dimensions and remove any burrs.
• Connect the supply (line) wire to one terminal and the load wire to the other terminal. Ensure firm crimp or solder connections as needed.
• Push the switch into the panel opening until it snaps into place. Verify the switch is secure and aligned.
• Restore power and test the ON and OFF positions to confirm correct operation.

Safety and Usage Tips

• Verify the switch’s current and voltage ratings meet your application requirements before installation.
• Use appropriate wire gauges and secure terminals to prevent overheating under load.
• Avoid exposing the switch to excessive moisture or corrosive environments unless it is specified as sealed.
• For automotive use, ensure proper insulation and strain relief to withstand vibration and temperature changes.

Why Choose This Rocker Switch

This large 2-pin rocker switch combines simple wiring with a robust design, making it a versatile option for many projects and products. Its snap-in mount reduces assembly time, and the large rocker improves ergonomics for operators. Whether you need a reliable switch for a DIY bench project or a rugged control for an appliance or vehicle, this rocker switch delivers dependable performance.

Note: Images are for illustration purposes only.
