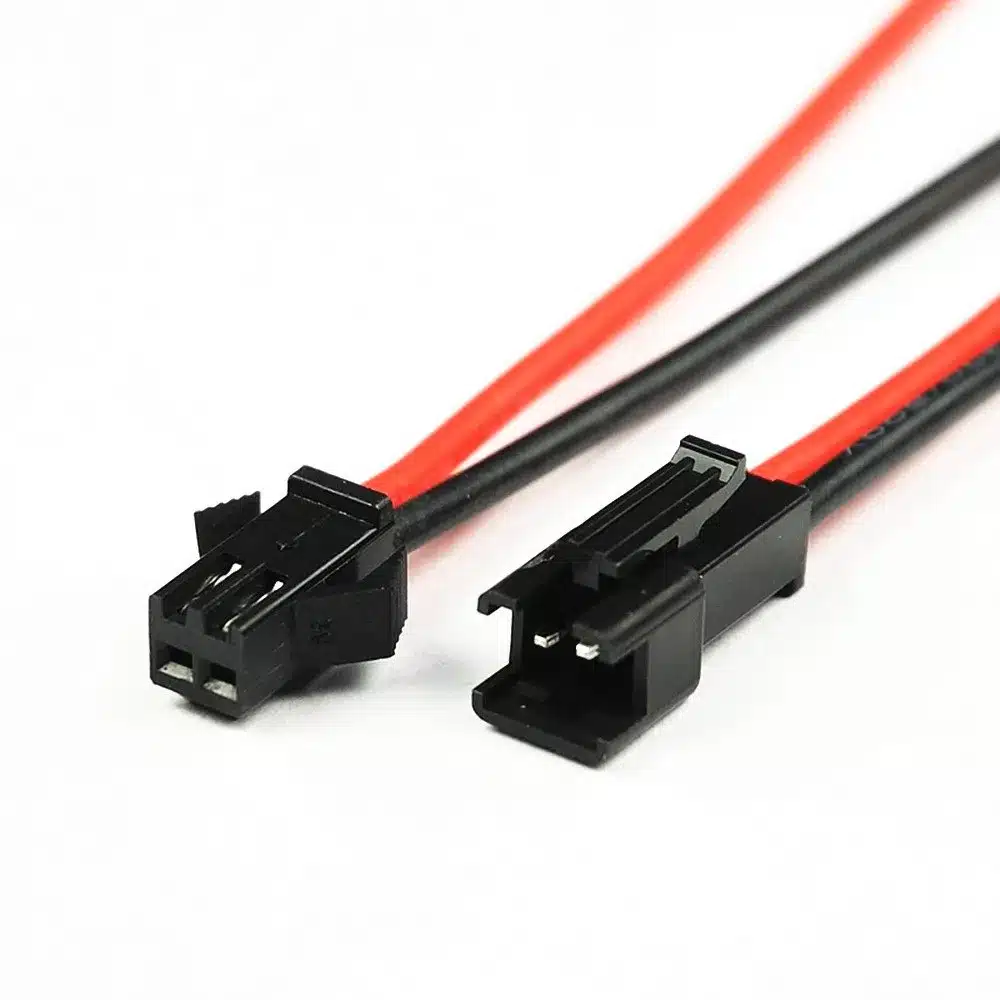

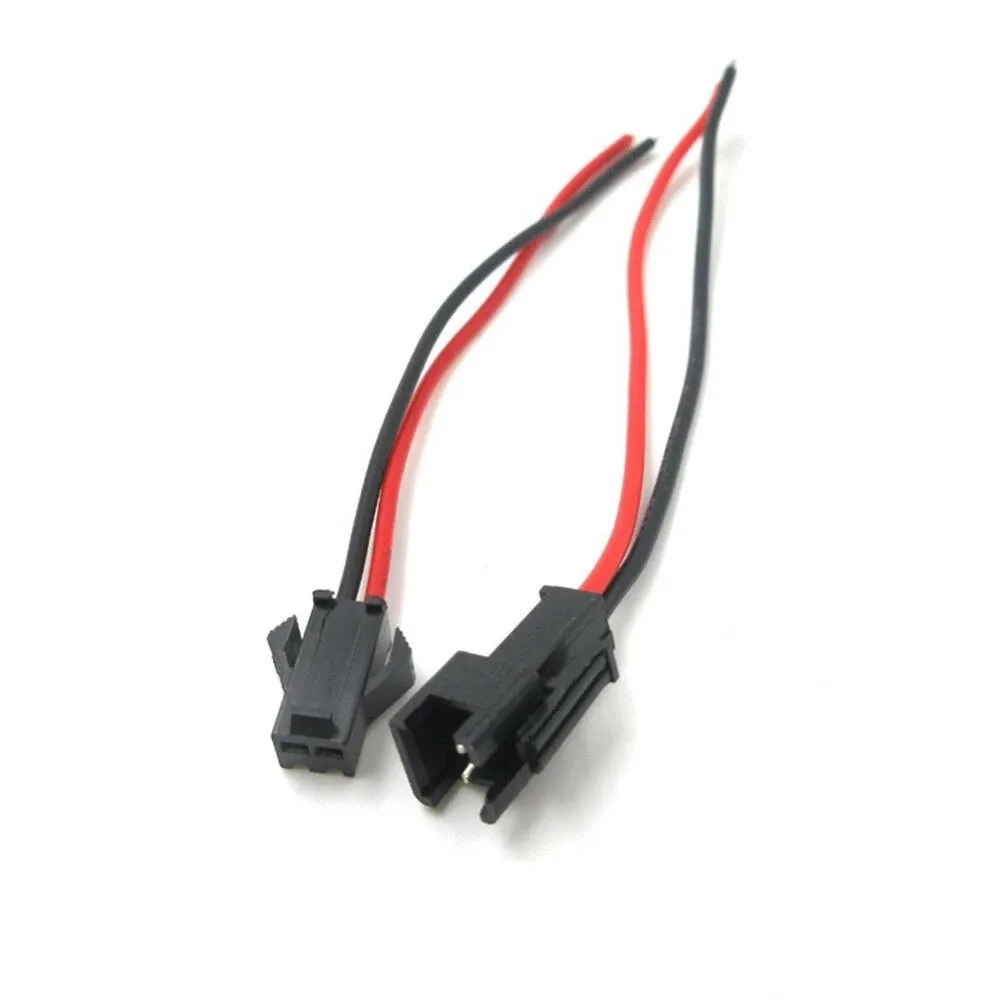

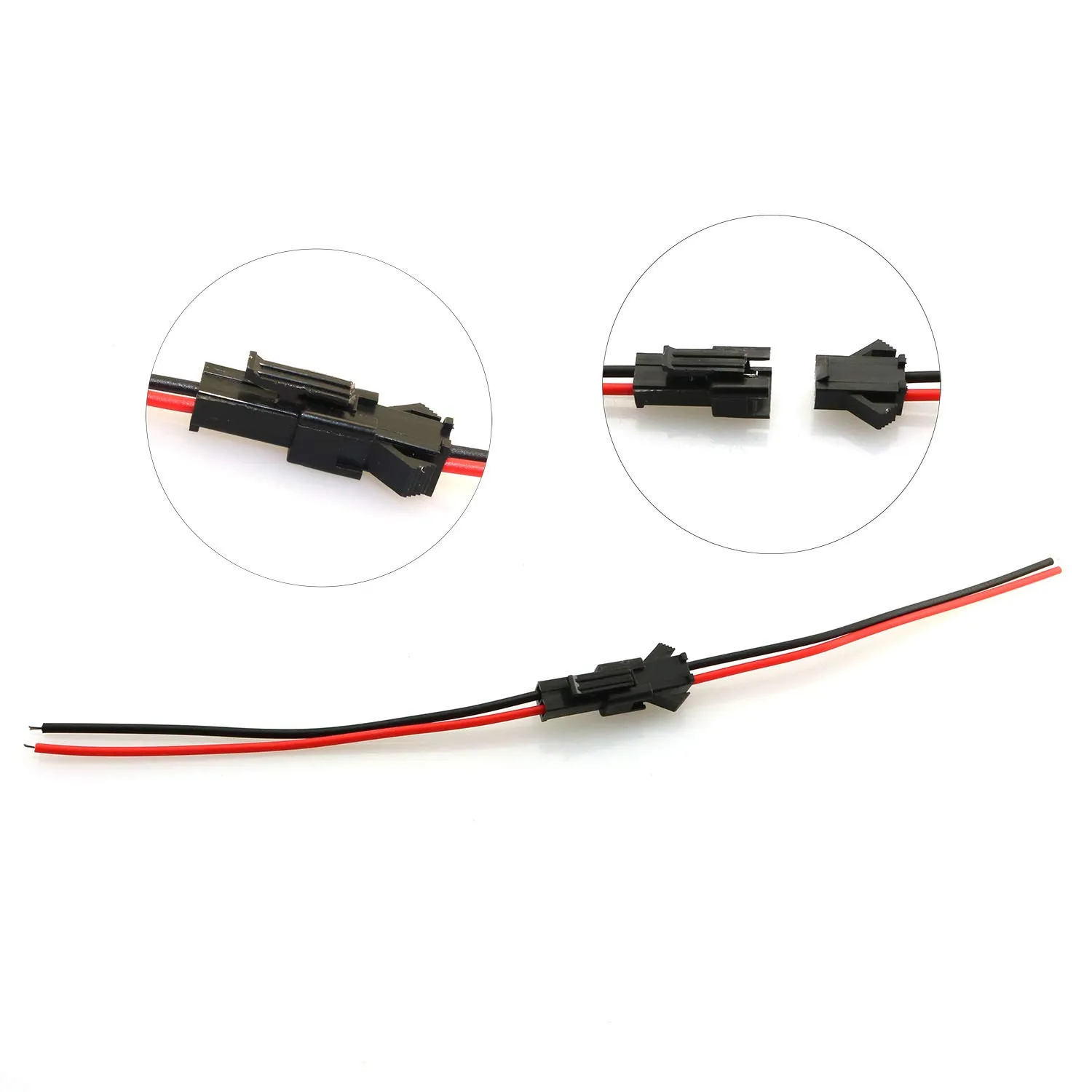

2-Pin JST SM Connector Wire Cable Pair (2.54mm Pitch)

Overview: 2-Pin JST SM Connector Wire Cable Pair (2.54mm Pitch)

The 2-Pin JST SM Connector Wire Cable Pair (2.54mm Pitch) is a reliable low-voltage DC connector solution built for electronics, LED lighting, robotics, and battery connections. This pre-wired male and female pair offers plug-and-play convenience, secure locking, and wide compatibility thanks to the common 2.54mm pitch.

Key Benefits

• Ready-to-use connector pair with pre-soldered red and black leads saves assembly time.
• Secure latch prevents accidental unplugging during operation or transport.
• Compact 2.54mm pitch matches many PCBs, power modules and LED controllers.

Features

• Connector type: 2-Pin JST SM male and female pair
• Pitch: 2.54mm, compatible with standard headers and modules
• Wire length: typically 15 cm to 20 cm per side, flexible silicone-insulated wires
• Color-coded wiring: red for positive, black for negative
• Durable plastic housing with secure locking tab and reliable pin alignment
• Easy plug-and-play connection, suitable for both prototyping and permanent installs
• Designed for low-voltage DC applications

Specifications

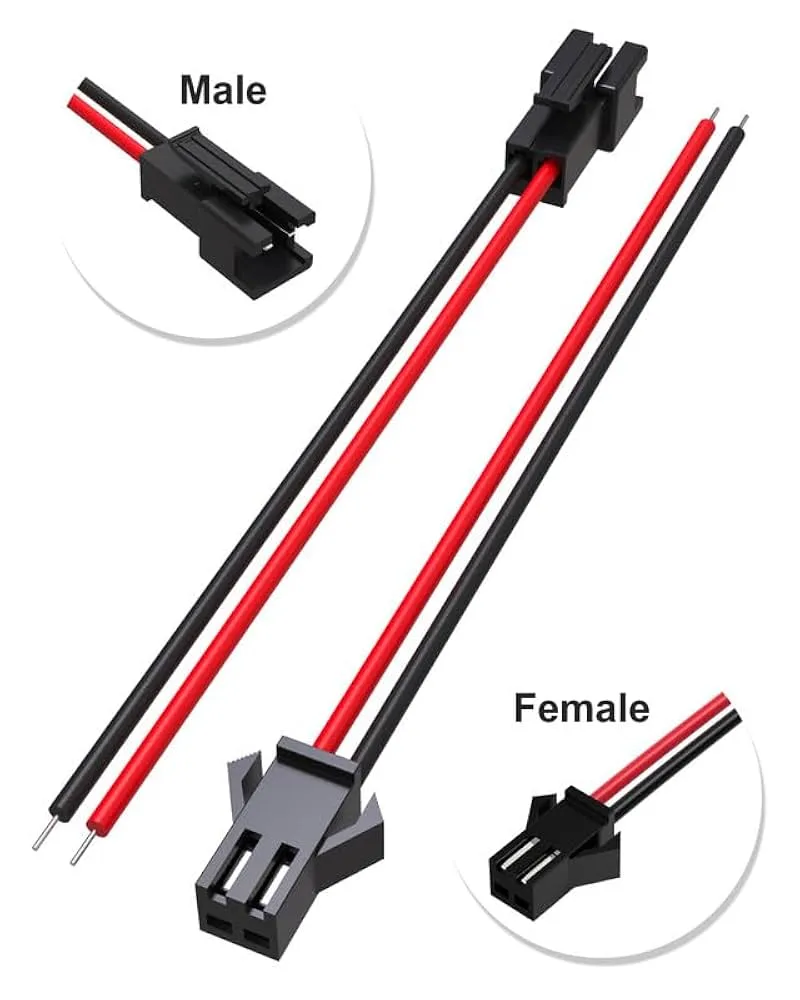

• Pair: 1x male connector and 1x female connector
• Pitch: 2.54mm
• Wire colors: Red (positive), Black (negative)
• Approximate wire length: 15 cm to 20 cm per side
• Housing: high-quality plastic
• Contact type: 2-pin metal contacts with alignment guides

Applications

This 2-Pin JST SM Connector pair is ideal for a variety of projects and equipment including:

• LED strip light connections and LED controllers
• Robotics, drones and actuator wiring
• Battery packs, power supply links and small DC modules
• DIY electronics, maker projects and prototyping
• Small appliances and plug-in modular connections

Installation and Wiring Tips

• Check polarity before connecting: red to positive, black to negative.
• Ensure the locking tab fully engages to avoid intermittent connections.
• Trim and strip wires carefully if modifying the length; use heat shrink for strain relief.
• Do not exceed the rated current and voltage of the mating components.

Compatibility

The 2.54mm pitch makes this JST SM connector compatible with many standard headers, LED controllers and power modules. Always confirm pinout and physical dimensions before mating with other connectors or PCBs.

Why Choose This 2-Pin JST SM Connector

• Quick, pre-wired solution that reduces assembly time
• Reliable mechanical latch for secure connections in mobile or vibration-prone applications
• Universal 2.54mm pitch for broad interoperability with electronics components
• Affordable and durable option for both hobbyists and professionals

Safety and Notes

• Suitable for low-voltage DC use only. Verify voltage and current requirements before use.
• Images are for illustration purposes only and actual product appearance may vary.
