2 DOF Pan and Tilt Bracket for Servo Motor (Big)

2 DOF Pan and Tilt Bracket for Servo Motor (Big) — Overview

The 2 DOF Pan and Tilt Bracket for Servo Motor (Big) is a robust mounting solution designed to add two degrees of controlled motion to your robotics, automation, and camera projects. Built from high-quality aluminum alloy, this bracket provides precise horizontal pan and vertical tilt movement using standard-size servo motors.

Why choose this pan and tilt bracket?

• Durable aluminum construction that balances strength with low weight
• Designed to accept common servos for straightforward integration
• Large form factor to support heavier payloads such as cameras, sensors, or laser modules
• Pre-drilled mounting holes speed up assembly and ensure secure attachment

Key Features

• Compatibility with MG995, MG996R and similar standard-size servo motors
• Two degrees of freedom: horizontal pan and vertical tilt for flexible positioning
• High-quality aluminum alloy for enhanced rigidity and long-lasting performance
• Pre-drilled holes for easy installation and reliable mounting
• Compact, lightweight design for easy integration into robotic systems
• Built to handle larger loads compared to smaller pan-tilt brackets

Compatibility and Technical Notes

Servo Compatibility

• Fits standard-size servos, explicitly compatible with MG995 and MG996R
• Check servo horn and screw hole alignment before final assembly

Recommended Uses

• Camera mounting and positioning for surveillance or streaming
• Sensor alignment and scanning in obstacle-detection robots
• AI vision and machine learning hardware rigs that require controlled motion
• Laser or sensor-based automation systems and tracking platforms

Installation and Assembly

• Includes pre-drilled holes for quick mounting of servos and payloads
• Use appropriate screws and washers to avoid stripping or loosening under load
• Balance heavier payloads to minimize strain on servo motors and increase lifespan

Materials and Durability

Constructed from high-quality aluminum alloy, this bracket provides superior strength and resistance to bending compared to plastic alternatives. The material choice ensures stable operation under load while keeping the overall weight low for better servo performance.

Applications

• Surveillance cameras and tracking systems
• Obstacle detection and scanning robots
• Smart AI vision and computer vision projects
• Laser or sensor-based automation systems

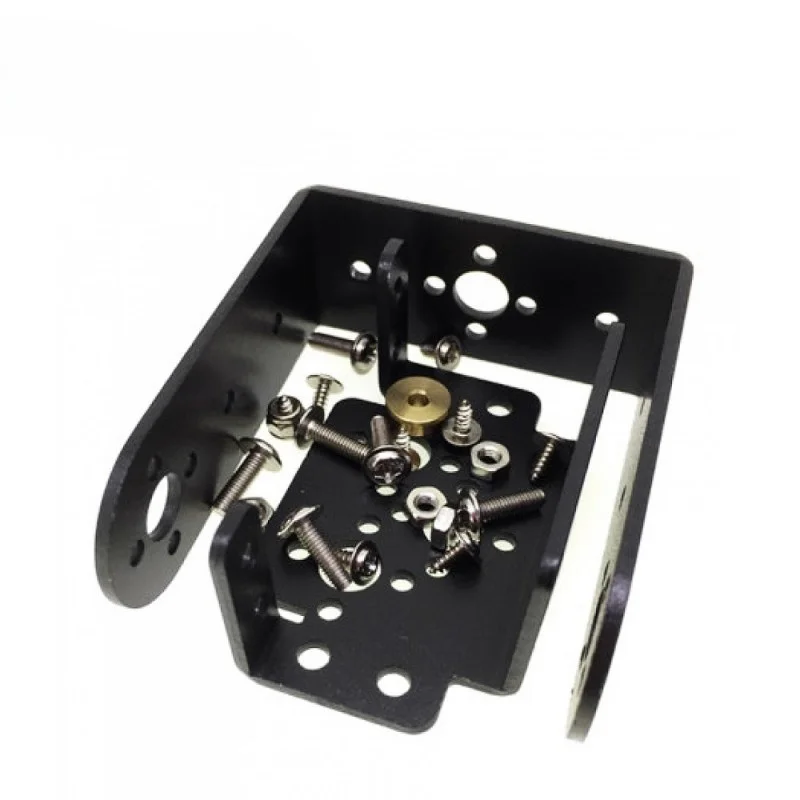

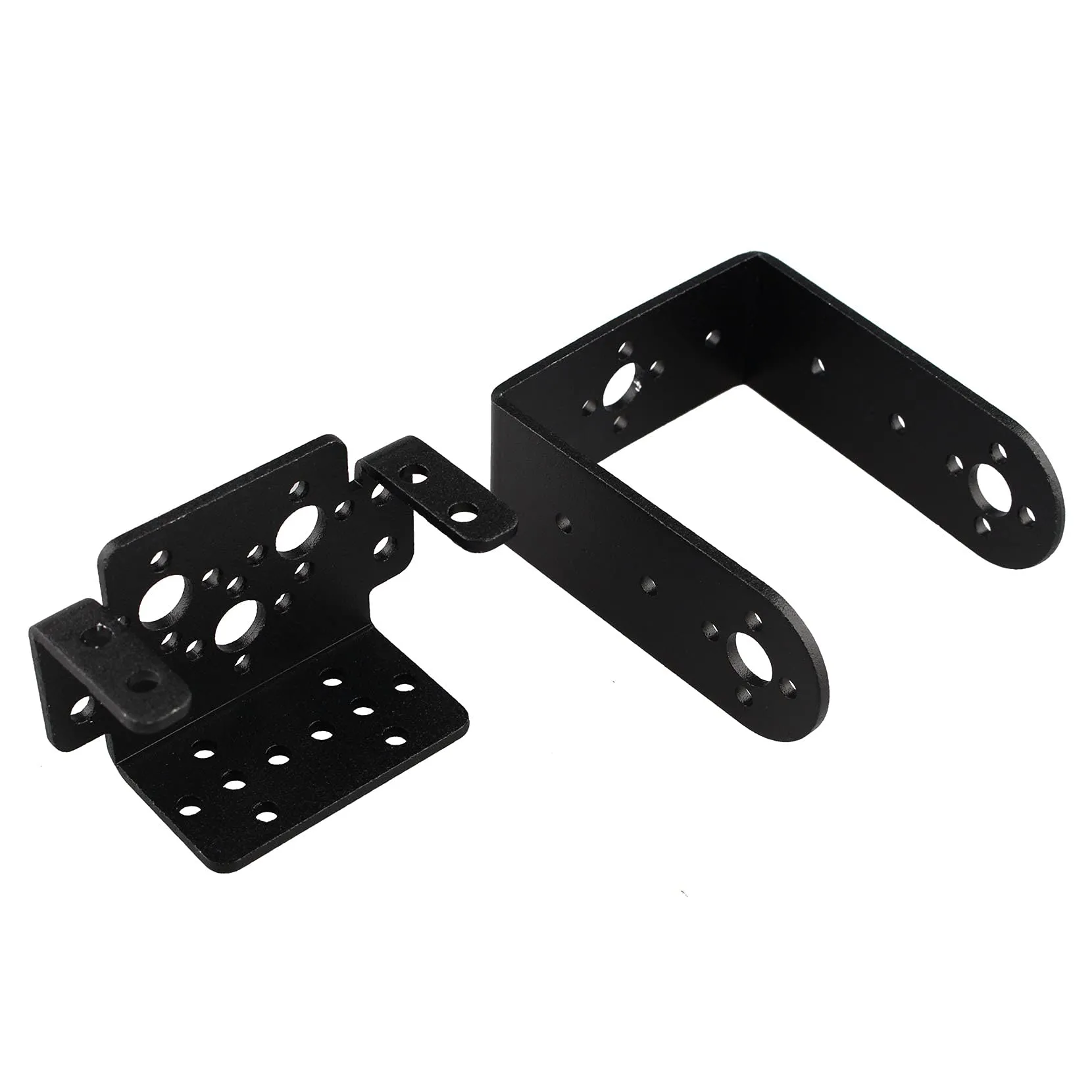

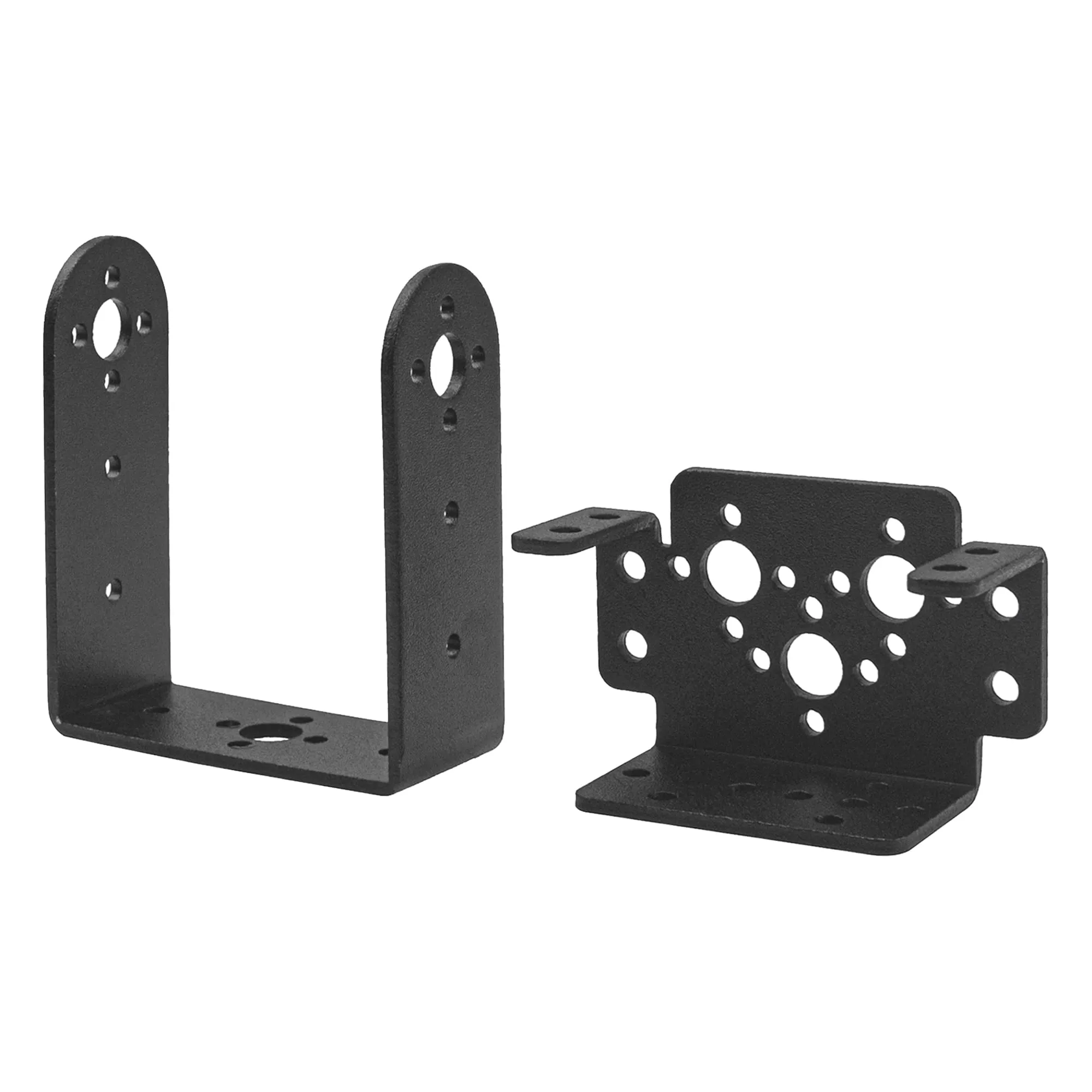

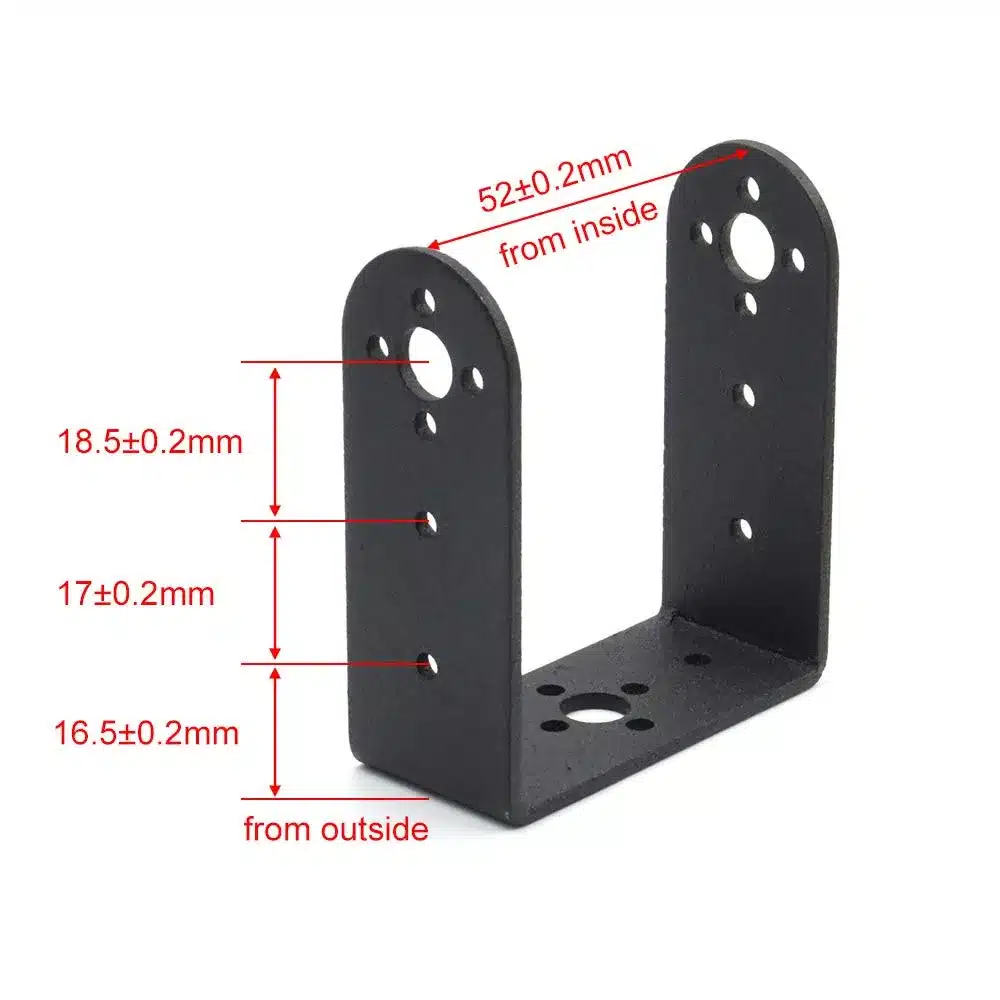

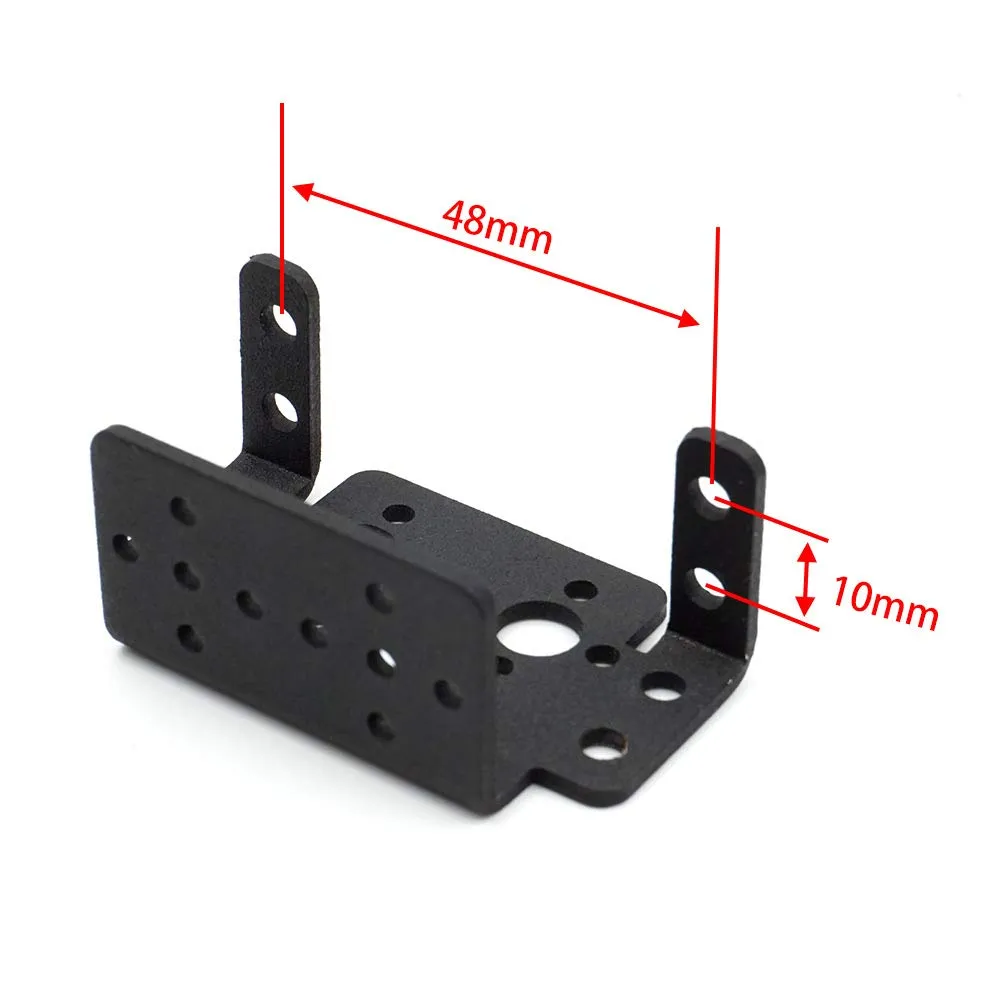

2 DOF Pan and Tilt Bracket — Images

Note: Images are for illustration purposes only.

Quick Specifications

• Material: Aluminum alloy
• Degrees of Freedom: 2 (pan and tilt)
• Compatible Servos: MG995, MG996R, and similar standard-size servos
• Mounting: Pre-drilled holes for servos and payloads

Buying and Integration Tips

• Pair with high-torque servos like MG995 or MG996R for heavier cameras or sensors
• Use lock washers or threadlocker on screws when mounting in mobile robots
• Test range of motion and clearances before finalizing electronics and cabling
