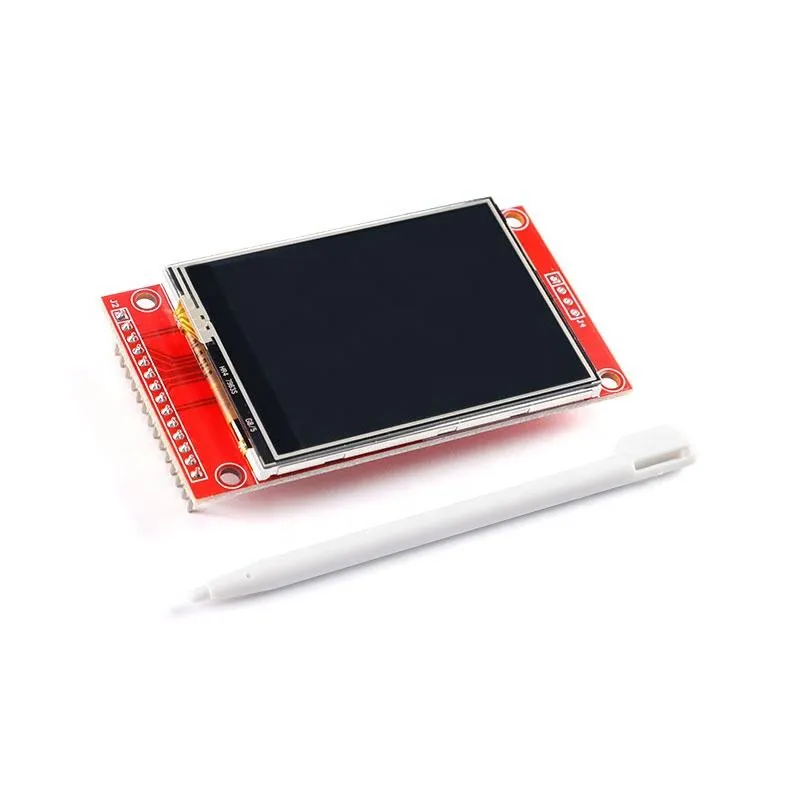

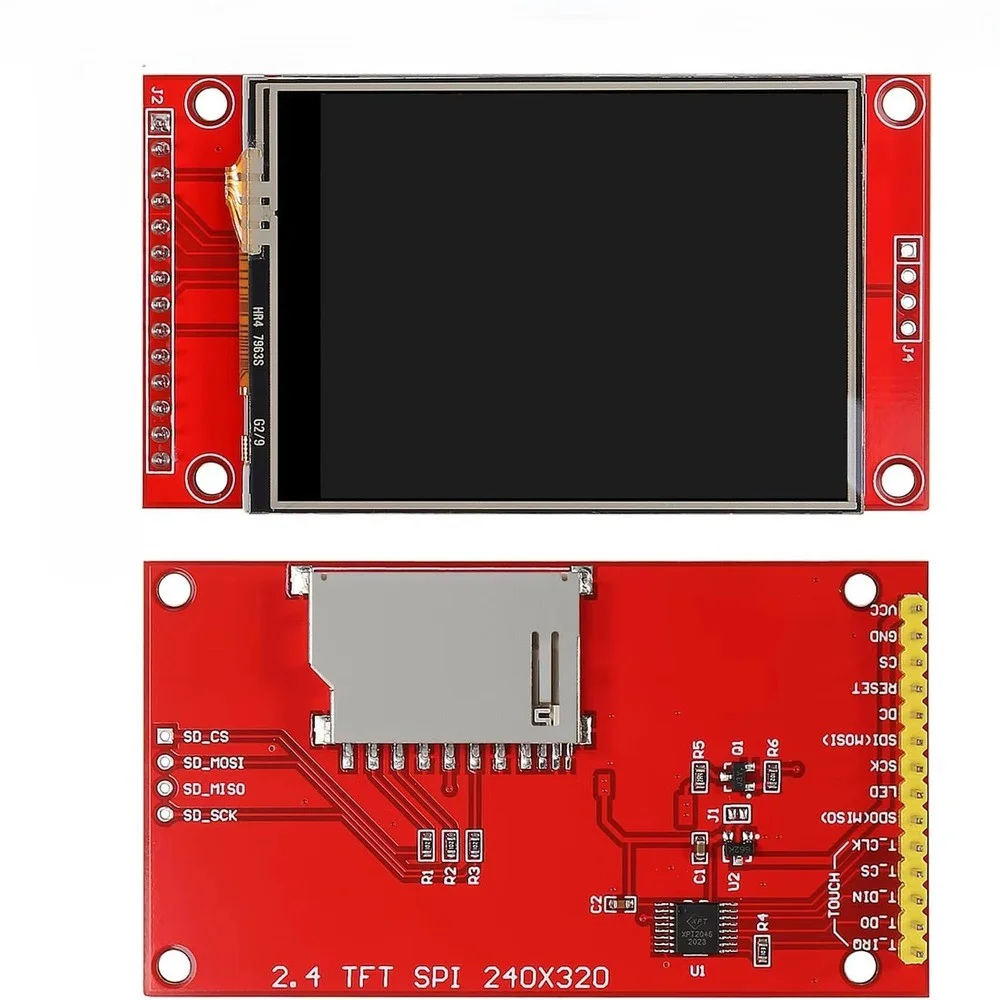

2.4 Inch SPI TFT Touch Display Screen Module (320×240)

The 2.4 Inch SPI TFT Touch Display Screen Module V1.3 is a versatile, high-resolution color display with touchscreen functionality, designed for Arduino, Raspberry Pi, ESP32, and other microcontroller platforms. Featuring a 320×240 pixel (QVGA) resolution and driven by the ILI9341 controller IC, this module delivers vibrant colors, smooth graphics, and responsive touch input — ideal for both interactive and visual display projects.

With its SPI communication interface, the display requires minimal GPIO pins, making it suitable for projects with limited I/O resources. The resistive touch panel allows for intuitive user interaction, perfect for developing graphical interfaces, control panels, monitoring systems, and compact embedded GUIs.

Features:

• Display Size: 2.4 inches (diagonal)
• Resolution: 320 × 240 pixels (QVGA)
• Display Type: Full-color TFT LCD
• Touchscreen Type: 4-wire resistive touch panel
• Driver IC: ST7789
• Interface Type: SPI (Serial Peripheral Interface)
• Color Depth: 65K colors (16-bit RGB)
• Operating Voltage: 3.3V – 5V (logic compatible)
• Backlight: White LED backlight for enhanced visibility
• Touch Controller IC: XPT2046 (resistive touch controller)
• Viewing Angle: Wide viewing with bright and vivid output
• Mounting: Compact PCB with mounting holes for easy integration
• Easy to Use: Compatible with Arduino and ESP libraries
• Low Power Operation: Suitable for portable, battery-operated systems
• Version: V1.3 — improved performance and optimized SPI handling

Applications:

• Touch-based user interfaces for embedded projects
• Arduino and ESP32 touch GUI displays
• Portable instrumentation and control panels
• DIY electronics and interactive learning kits
• Smart home and automation displays
• Sensor data visualization and graphical dashboards
• Robotics and IoT device interfaces

Specifications:

• Screen Size: 2.4 inches
• Resolution: 320×240 pixels (QVGA)
• Display Controller: ST7789
• Touch Controller: XPT2046 (resistive type)
• Interface: SPI (4-wire)
• Touch Feature: Available (Touch)
• Color Support: 65K (16-bit)
• Operating Voltage: 3.3V – 5V
• Backlight Type: White LED
• Touch Type: Resistive (Stylus or Finger)
• Operating Temperature: -20°C to +70°C
• Module Dimensions: Approximately 71mm × 52mm × 7mm

Note: Images are for Illustration Purposes Only.
