1N4007 Rectifier Diode (1000V 1A)

Overview — 1N4007 Rectifier Diode (1000V 1A)

The 1N4007 Rectifier Diode is a widely used power diode in the 1N400x family, providing the highest voltage rating in the series. Designed for AC to DC rectification, surge protection, and general-purpose power management, the 1N4007 combines high reverse voltage with dependable forward current handling for hobbyist and industrial applications.

Key Features

• Reverse voltage up to 1000V for high-voltage circuits
• Continuous forward current of 1A for everyday rectification tasks
• Peak surge current (IFSM) up to 30A to handle inrush events
• Low forward voltage drop (~1.1V at 1A) for efficient operation
• Fast recovery characteristics and robust construction for long-term reliability
• Compact DO-41 axial package, easy to mount on PCB or breadboard

Technical Specifications

• Diode Type: Rectifier Diode
• Model: 1N4007
• Reverse Voltage (VR): 1000V
• Forward Current (IF): 1A
• Peak Surge Current (IFSM): 30A
• Package: DO-41 (axial)
• Forward Voltage Drop (VF): ~1.1V at 1A
• Operating Temperature: -55°C to +150°C

Typical Applications

• AC to DC rectification and single-phase bridge rectifiers
• Power supply circuits for adapters and chargers
• SMPS pre-rectification and auxiliary power stages
• Reverse polarity protection and general-purpose electronic circuits
• Battery chargers, consumer electronics, and DIY projects

Installation and Usage Tips

• Observe correct polarity when placing the diode in series for rectification or protection.
• Provide adequate heat sinking or ventilation if operating near the 1A continuous limit to avoid thermal stress.
• For bridge rectifiers, use four 1N4007 diodes to convert AC mains to DC safely; ensure each diode meets the required voltage margin.
• Avoid repeated surge conditions above the IFSM rating to extend diode life.

Why Choose the 1N4007 for Your Design

The 1N4007 is a cost-effective, reliable choice when you need high reverse voltage capability without sacrificing ease of use. It is suitable for both prototyping on breadboards and permanent PCB installations in commercial products.

Ordering and Packaging

• Package Type: DO-41 axial lead
• Sold individually or in bulk packs for production runs
• Check part markings and supplier datasheets for lot traceability when sourcing for critical applications

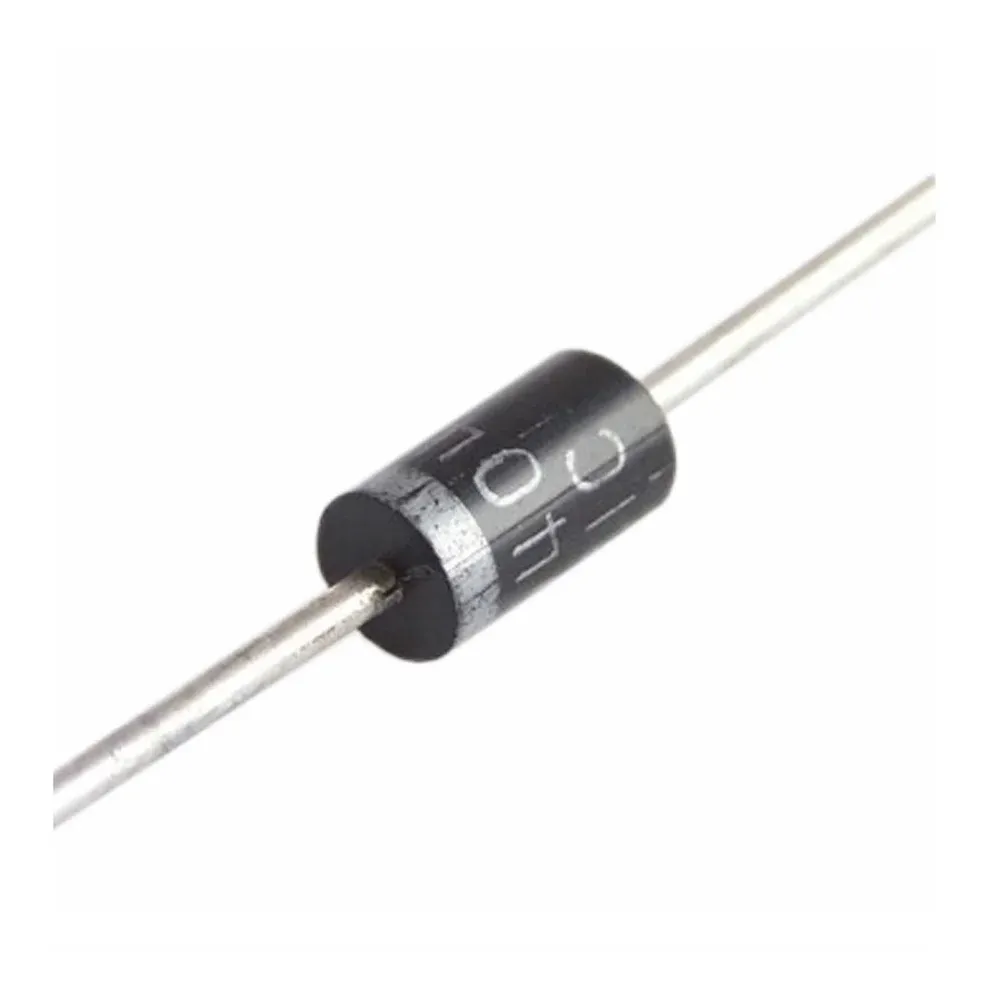

Note: Images are for Illustration Purposes Only.
