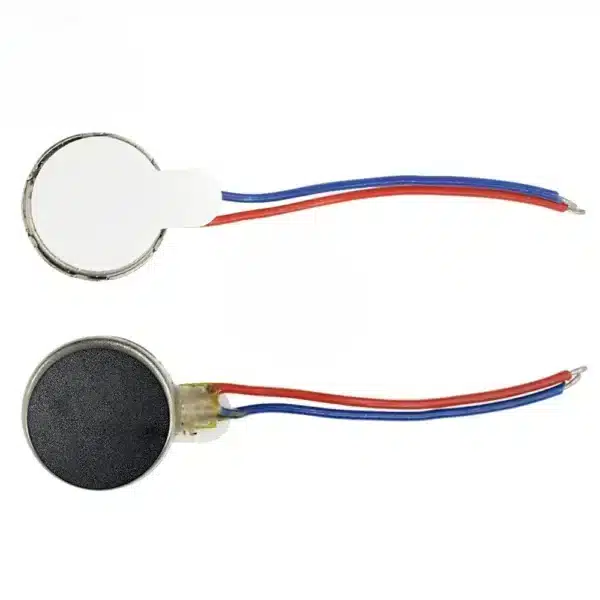

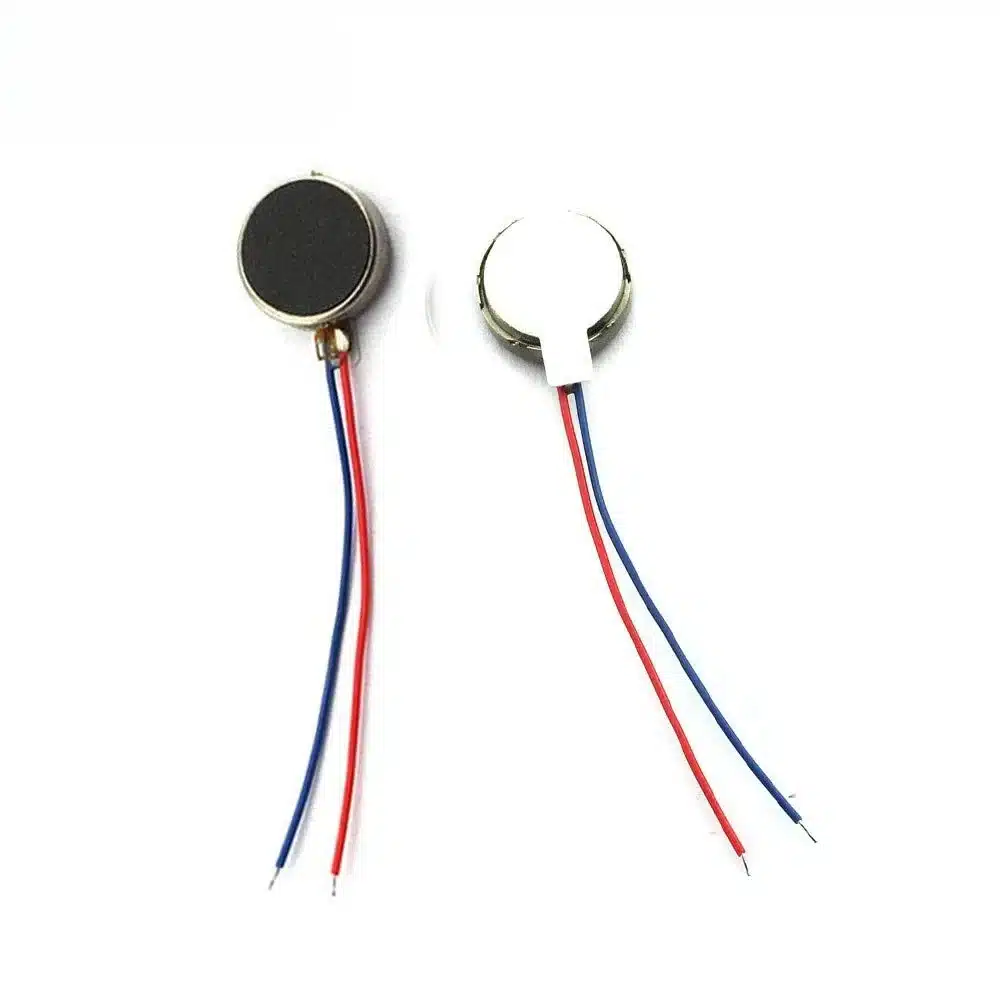

1034 Mini DC Vibration Motor (XHXDZ-1034)

Availability:

Available on backorder


  • Compact cylindrical mini DC vibration motor for tight spaces
  • Operates on low DC voltage (typically 3V to 5V)
  • Produces strong, stable haptic feedback with low power draw
  • Durable construction for long operational life
  • Perfect for wearables, toys, alarms, and handheld devices
  • Easy to integrate into DIY, Arduino, and embedded projects

1034 Mini DC Vibration Motor (XHXDZ-1034) — Overview

The 1034 Mini DC Vibration Motor (XHXDZ-1034) is a compact cylindrical motor designed to provide reliable haptic feedback and vibration alerts in small electronic devices. An off-center weight on the shaft creates consistent vibrations when the motor spins, making it ideal for applications where space is limited but tactile feedback is required.

Key Features

  • Model: XHXDZ-1034
  • Type: Mini DC vibration motor with compact cylindrical shape
  • Operating voltage: Typically 3V to 5V DC (depends on circuit design)
  • Low power consumption optimized for battery-powered devices
  • Strong, stable vibration amplitude suitable for haptic alerts
  • Durable construction for long operational life in portable products

Specifications

  • Model: XHXDZ-1034
  • Shape: Cylindrical
  • Voltage: Typically 3V to 5V DC
  • Usage: Haptic feedback and vibration alerts in compact devices

Typical Electrical Characteristics and Recommendations

  • Designed for low-voltage DC operation, making it suitable for coin or Li-ion battery powered devices
  • Low current draw appropriate for wearable electronics and portable gadgets
  • Drive recommendations: use a transistor or logic-level MOSFET when controlling from microcontrollers, and include a flyback protection solution or snubber when using switching transistors
  • For adjustable vibration intensity, control the motor with PWM from a microcontroller and add a small decoupling capacitor across the supply to reduce electrical noise

Mounting and Mechanical Integration

  • Slim cylindrical body fits into tight housings and small cavities
  • Mount using adhesive pads, screws with an appropriate bracket, or press-fit slots depending on enclosure design
  • Consider isolation pads or foam if you need to limit vibration transfer to nearby components

Applications

  • Wearable devices and smart bands
  • Mobile phones, pagers, and notification devices
  • Alarm systems and notification modules
  • Toys, handheld devices, and game controllers
  • DIY electronics and Arduino projects requiring haptic feedback
  • Embedded systems that need tactile alerts in compact form factors

Integration Tips for Developers

  • When connecting to an Arduino or microcontroller, drive the motor through a transistor or MOSFET and use a separate power rail if multiple motors are used to avoid brownouts
  • Add a small diode or RC snubber if switching the motor with an inductive load driver to protect control electronics
  • Test vibration orientation in the final enclosure to ensure the desired tactile sensation is achieved
  • Keep wiring short and use decoupling to minimize electrical interference with sensitive sensors

Why Choose the 1034 Mini DC Vibration Motor

  • Balanced performance for strong haptic feedback with minimal power consumption
  • Compact form factor ideal for wearables, toys, and compact electronics
  • Easy to integrate into prototyping and production environments

Note: Images are for illustration purposes only.
